Snow via Javascript & Canvas – Tis the Season

After playing with the settings in my experiments I found a few settings I liked and wanted to develop further. The first was snow! An added bonus I was able to work on a project just for the holidays and used much of this code in it! I looked around the web and saw a couple interesting examples of snow, but nothing that stood out to me. I used couple images and pulled them into the canvas in place of the dot (choosing one of 3 flake graphics), and learned how to apply a rotation to that graphic from somewhere online (I think stackoverflow, but now I can’t find it again to link it. The physics settings are hardcoded now and the update function doesn’t check the dot y position against the top of the page, since the snow should all be moving down with the gravity, it could be moved up with it’s floating, but I just wanted it to come down on it’s own. Then to get the rotation we need to save the context state, more to the flake center, rotate it and then move back to the canvas origin, draw the image and restore context. This process sounded complicated and took a bit to get things in the right order and the whole time I was scared it would be too processor intense for a good amount of snowflakes, it seems to do just fine! interactive physics animations via javascript & canvas | snow application example: check it out!

[cc lang=”javascript”]
$(function () {
var canvas, context, width, height, x, y, radius = 25, clickX, clickY, drag = false;
var total_dots = 150;
var fps = 24;

canvas = $(“#canvas”)[0];
context = canvas.getContext(“2d”);
var dots = new Array();
var drag_i = -1;
var gravity = .05;
var friction = .98;
var bounce = -.96;
var wrap = true;
var float = true;

var imgs = new Array();
var img1 = new Image();
var img2 = new Image();
var img3 = new Image();
img1.src = “snowflake_1.png”;
img2.src = “snowflake_2.png”;
img3.src = “snowflake_3.png”;
imgs[0] = img1;
imgs[1] = img2;
imgs[2] = img3;
var this_dot = {};
for (var i=0; i < total_dots; i++){ createDot(); } function createDot(x, y, r, vx, vy){ var this_dot = { x: typeof(x) != 'undefined' ? x : Math.random()*canvas.width, y: typeof(y) != 'undefined' ? y : Math.random()*-canvas.height, radius: typeof(r) != 'undefined' ? r : 25, scale: Math.floor(10 + (1+50-10)*Math.random()), vx: typeof(vx) != 'undefined' ? vx : Math.random()*3-1, vy: typeof(vy) != 'undefined' ? vy : Math.random()*3, //this will pick a digit 1, 2 or 3 and set it as the src value, this could also be a Math.floor(Math.random()*3)+1 to really be random src: (dots.length % 3) + 1, r: 0, vr: 0 }; dots.push(this_dot); } draw(); $("#canvas").mousedown(function (event) { createDot(event.pageX - this.offsetLeft-25, event.pageY - this.offsetTop-25); }); $("#canvas").mouseup(function (event) { drag = false; drag_i = -1; }); function update(){ for (var i=0; i < dots.length; i++){ if (drag_i != i){ var this_dot = dots[i]; if (float){ this_dot.vx += Math.random() - .5; this_dot.vy += Math.random() - .5; this_dot.vr += Math.random()*.01 - .005; } this_dot.vx *= friction; this_dot.vy = this_dot.vy * friction + gravity; this_dot.x += this_dot.vx; this_dot.y += this_dot.vy; this_dot.r += this_dot.vr; if (this_dot.x > canvas.width + this_dot.radius){
this_dot.x -= canvas.width + this_dot.radius*2;
this_dot.vr = 0;
}
else if(this_dot.x < 0 - this_dot.radius){ this_dot.x += canvas.width + this_dot.radius*2; this_dot.vr = 0; } if (this_dot.y > canvas.height + this_dot.radius){
this_dot.y -= canvas.height + this_dot.radius*2;
this_dot.vr = 0;
}

}
}
}
function draw() {
context.clearRect(0, 0, canvas.width, canvas.height);
for (var i=0; i < dots.length; i++){ var src = img1; if (dots[i].src == 1){ } else if (dots[i].src == 2){ src = img2; } else { src = img3; } context.save(); context.translate(dots[i].x+dots[i].scale/2, dots[i].y+dots[i].scale/2); context.rotate(dots[i].r); context.translate(-dots[i].x-dots[i].scale/2, -dots[i].y-dots[i].scale/2); context.drawImage(src, dots[i].x, dots[i].y, dots[i].scale, dots[i].scale); context.restore(); } } setInterval(function() { update(); draw(); }, 1000/fps); }); [/cc]Follow the whole Interactive Physics Animations via Javascript & Canvas series.

A More Interactive Portfolio

I think a portfolio is something that should be very interactive and intuitive. Check out what that has led to: circlecube’s interactive pog portfolio. I’ve been toying with trying to get something that was fun to look at, but also showed some work. Here is a first look at my Interactive portfolio of work which includes physics simulations and many options to play with the presentation of the body of work. Showing it to a friend he said it made him think of pogs (since the thumbnails are round and moving everywhere).

Well, enough, I’ll let you see what you see… Interactive POG Portfolio

The details

Well, if you’re interested, this is the same portfolio that is listed statically on my website. That’s because I’m using amfphp to read my wordpress database and get the custom post type of portfolio and access all the tags, images and details of each portfolio item. I’m using TweenNano from greensock for some of the motion but all the physics is coded in as3. I’m using the slider and switch from Nick Jonas.

Enjoy playing with the settings!

Now I’m thinking of other ways to implement it: specifically hooking into API services like last.fm, dribbble or twitter. Or rebuild it with jQuery and html5!

Interactive Generative Art Series – 02 – Random Color

gen-art-02-1gen-art-02-2gen-art-02-3

With this example we’re taking a look at having randomly changing color. I liked the limits to the color in the last post, but couldn’t help myself and wanted to see it with the full range of colors to command. Also, I wasn’t a huge fan when the color would “wrap” and jump from one color to the next so fast. I wanted to use the same velocity (rate of change) principle from the line width experiment but apply it to color, and have it meander aimlessly among all colors. I created a color object to store a value for each of the RGB color values, and then had each element of the color change independently. I didn’t want to complicate my loop function so I made a new function that is called from loop that steps along to a color which should be pretty close to the previous color. I enjoy the range, but as I expected it was a bit much, or too many colors at once, also the step is a bit too fast at times it seems.

02 Color, play here

[kml_flashembed publishmethod=”dynamic” fversion=”9.0.0″ movie=”https://circlecube.com/circlecube/wp-content/uploads/sites/10/2011/02/gen-art-02-color.swf” width=”550″ height=”550″ targetclass=”flashmovie”]

Please visit the blog article to view this interactive flash content. Flash plug-in required: Get Adobe Flash player

[/kml_flashembed]

actionscript source code

[cc lang=”actionscript”]
var ball:Sprite = new Sprite();

ball.graphics.beginFill(0x333333, 1);
ball.graphics.drawCircle(0, 0, 30);
ball.graphics.endFill();
addChild(ball);

var div:Number = .1;

var ax:Number = 0;
var ay:Number = 0;

var line_max_width:Number = 50;
var line_min_width:Number = 0;
var line_width:Number = Math.random() * line_max_width;
var line_width_velocity:Number = 0;
var dampen:Number = 0.95;

var colors:Object = new Object();
colors.r = 0;
colors.g = 0;
colors.b = 255;
colors.rv = 0;
colors.gv = 0;
colors.bv = 0;

function loop () {
ball.x -= ax = (ax + (ball.x – mouseX) * div) * .9;
ball.y -= ay = (ay + (ball.y – mouseY) * div) * .9;

line_width_velocity += Math.random() * 6 – 3;
line_width += line_width_velocity;
line_width_velocity *= dampen;
if(line_width > line_max_width) { line_width = line_max_width; }
if (line_width < line_min_width) { line_width = line_min_width; }

color_step();

this.graphics.lineStyle(line_width, rgb2hex(colors.r, colors.g, colors.b), 1);
this.graphics.lineTo(ball.x, ball.y);
}

setInterval(loop, 1000/30);

function rgb2hex(r:Number, g:Number, b:Number):Number {
return(r<<16 | g<<8 | b); } function color_step(){ colors.rv += Math.random() * 20 – 10; colors.r += colors.rv; colors.rv *= dampen; if (colors.r > 255) {
colors.r = 255;
} else if (colors.r < 0){ colors.r = 0; } colors.gv += Math.random() * 20 – 10; colors.g += colors.gv; colors.gv *= dampen; if (colors.g > 255) {
colors.g = 255;
} else if (colors.g < 0){ colors.g = 0; } colors.bv += Math.random() * 20 – 10; colors.b += colors.bv; colors.bv *= dampen; if (colors.b > 255) {
colors.b = 255;
} else if (colors.b < 0){
colors.b = 0;
}
}
[/cc]

Download

View the swf and get the fla here

Interactive Generative Flash Art Series – 00 – Line Width

After seeing the source code in the original experiment, I found myself wanting to play with the code. I saw many elements of the lines and actions that could be interesting to explore. This is the first in a series, of experiments I’ll post starting from this code and pushing different things each time. They’ll start slow and simple, like this one. All I’m doing is adding a few lines of code. The first thing I wanted to see from the original was a more gradual step in the width of the line. Here are a few screenshots from this iteration:

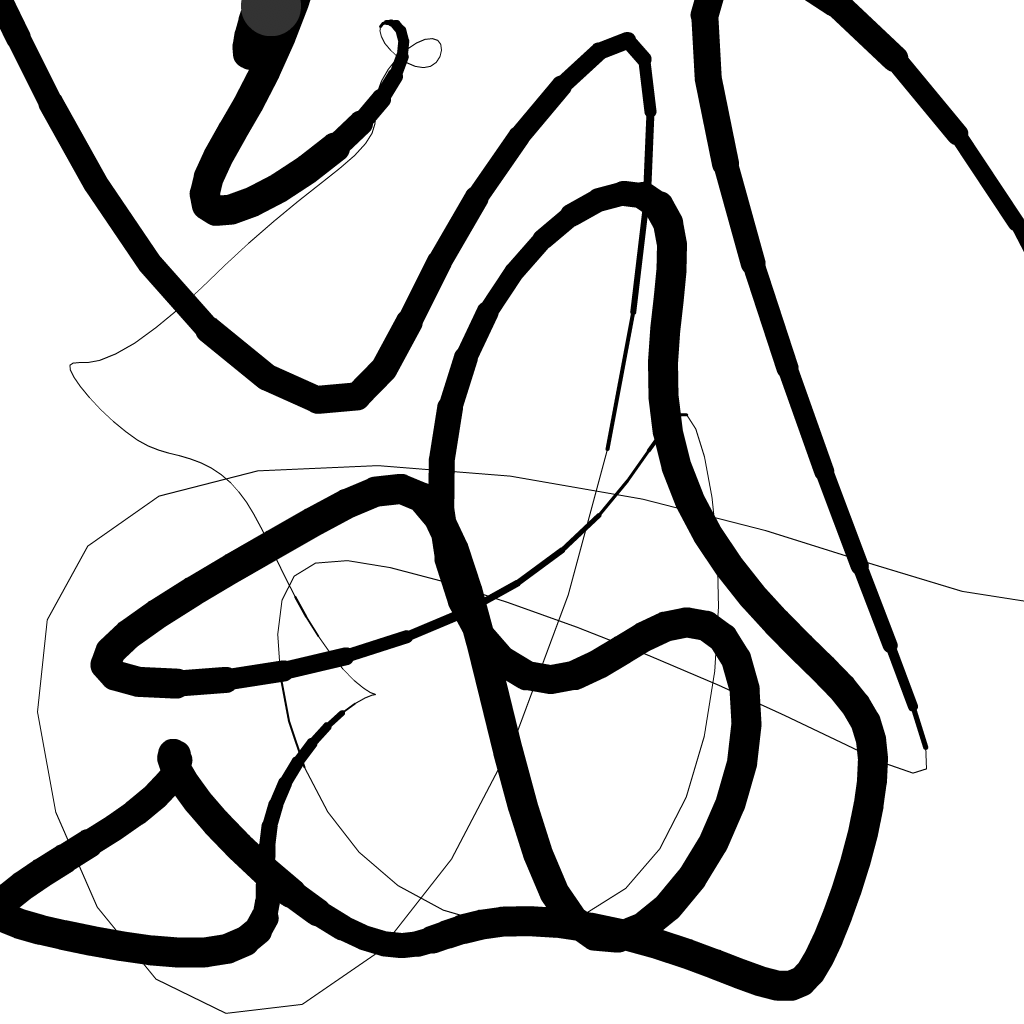

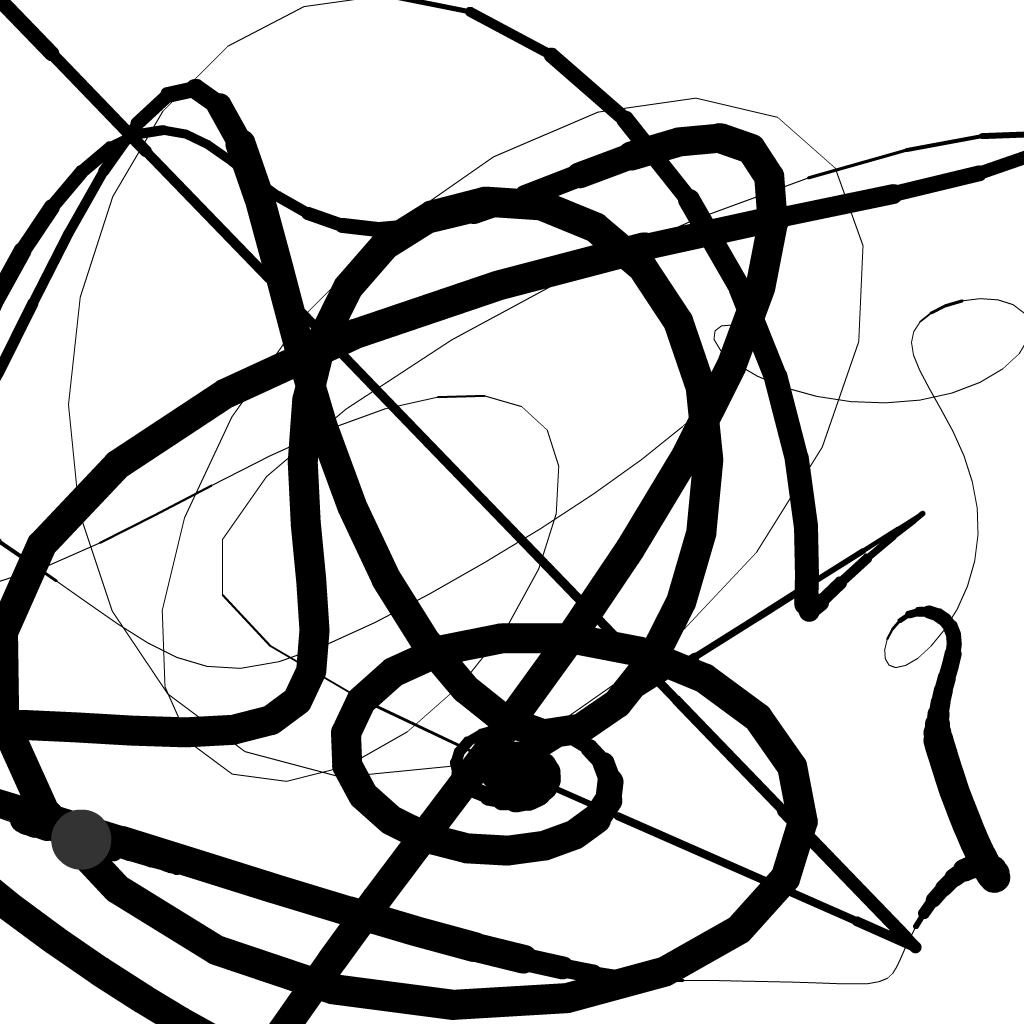

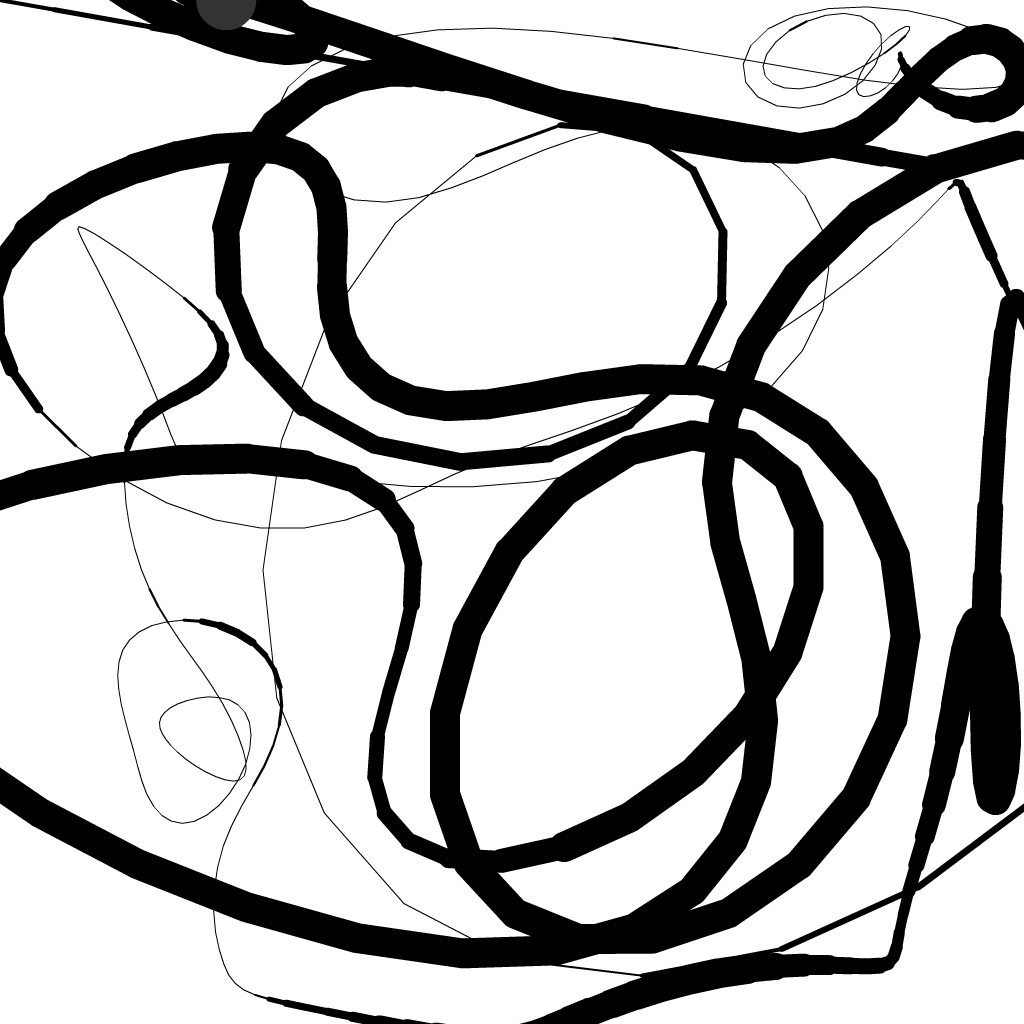

gen-art-00-line-width-1gen-art-00-line-width-2gen-art-00-line-width-3

Play here

[kml_flashembed publishmethod=”dynamic” fversion=”9.0.0″ replaceId=”gen-art-00″ movie=”https://circlecube.com/circlecube/wp-content/uploads/sites/10/2011/01/gen-art-00-line-width.swf” width=”550″ height=”550″ targetclass=”flashmovie”]

Please visit the blog article to view this interactive flash content. Flash plug-in required: Get Adobe Flash player

[/kml_flashembed]

Source Code

[cc lang=”actionscript”]
var ball:Sprite = new Sprite();
ball.graphics.beginFill(0x333333, 1);
ball.graphics.drawCircle(0, 0, 30);
ball.graphics.endFill();
addChild(ball);

var div:Number = .1;
var ax:Number = 0;
var ay:Number = 0;

var line_max_width:Number = 30;
var line_min_width:Number = 0;
var line_width:Number = Math.random() * line_max_width;
var line_width_velocity:Number = 0;
var dampen:Number = 0.95;

function loop () {
ball.x -= ax = (ax + (ball.x – mouseX) * div) * .9;
ball.y -= ay = (ay + (ball.y – mouseY) * div) * .9;

line_width_velocity += Math.random() * 4 – 2;
line_width += line_width_velocity;
line_width_velocity *= dampen;
if(line_width > line_max_width) { line_width = line_max_width; }
if (line_width < line_min_width) { line_width = line_min_width; }
this.graphics.lineStyle(line_width, 0, 1);
this.graphics.lineTo(ball.x, ball.y);
}

setInterval(loop, 1000/30);
[/cc]

Method Explained

If you need a little walk through on my method to achieve this, all I did was create a variable to hold my line width, and the line width velocity (or rate of change). Every frame the line velocity grows or shrinks randomly and is applied to the line width variable. I apply a dampen to the velocity so it doesn’t get too out of hand and then set some limits to the line width. Pretty simple and it applies the same method of applying velocity to an object to make it move, but this velocity is being applied to a property of the object (width) that may not be as obvious as position. This still gives an effect of random width to the lines, but they are randomly widening and thinning, rather than just having random widths. It gives it a more fluid appearance. Any other ways you would use to achieve the same effect?

Download

Here’s the swf in action as well as the fla.

Interactive Generative Flash Art Series Intro

The world has been excited by html5/css3 recently and has been pushing limits and experimenting. It’s been exciting and funny at the same time – most of the things that are amazing people in html5 experiments have been done 5 years ago in flash. I’ve enjoyed it so much though because it has brought me back to what made me fall for flash initially: sites like levitated.net and yugop.com. People that wrote books about programming actionscript like Keith Peters, Jim Bumgardener Colin Moock, Robert Penner etc… and then art by people like Erik Natzke. I’m a geek and these guys are some of my heros (and don’t think that list is exhausted, I’ve got plenty of unmentioned flash heros), but not just because they could/can do what they do, but because they selflessly (open source-ly) taught me how to do some of it. The magic of creating something so engaging, responsive, animated, unique, random. Little experiments that feel like they contain so much life and are so lightweight -easily less than 10,240 bytes (read 10kb). I knew in high school trig and calculus that those formulas had power, but seeing it unfold and interact with it really is magical to me.

ball-natzke-1ball-natzke-2ball-natzke-3

A little inspiration

So, I’ve been toying with a lot of the things that actually taught me (or at least pushed me to learn) the basics of programming. With the years experience under my belt now I’m understanding it on a totally different level and all I want to do is find more things to make balls and lines bounce, move and swirl. And I also want to share it. Well, I recently stumbled upon a flash sneak peak video by Erik Natzke about some of his technique and then his open source files and really had some fun. Anyways I wanted to share some of the experiments that came from it. Let me know your thoughts and download the code and play with it. Let me know what else you come up with and share what you learn. I’ll start this series with a post of the original experiment from Erik on his blog here, Flash Code 101.

Natzke’s Flash Code 101

[kml_flashembed publishmethod=”dynamic” fversion=”9.0.0″ replaceId=”alt-ball-natzke” movie=”https://circlecube.com/circlecube/wp-content/uploads/sites/10/2011/01/ball-natzke.swf” width=”550″ height=”550″ targetclass=”flashmovie”]

Please visit the blog article to view this interactive flash content. Flash plug-in required: Get Adobe Flash player

[/kml_flashembed]

If it looks like greek to you, I’d suggest going to Keith Peter’s tutorials (especially the first few on gravity, easing and elasticity).

Actionscript 3

For something so fun, it’s amazing that it’s barely over a dozen lines of code.
[cc lang=”actionscript”]
var Ball:Sprite = new Sprite();
Ball.graphics.beginFill(0x333333, 1);
Ball.graphics.drawCircle(0, 0, 30);
Ball.graphics.endFill();
addChild(Ball);

var div:Number = .1;
var ax:Number = 0;
var ay:Number = 0;

function loop () {
Ball.x -= ax = (ax + (Ball.x – mouseX) * div) * .9;
Ball.y -= ay = (ay + (Ball.y – mouseY) * div) * .9;
this.graphics.lineStyle(Math.random()*10, 0, 1);
this.graphics.lineTo(Ball.x, Ball.y);
}

setInterval(loop, 1000/30);
[/cc]

Here’s the swf in action, or download the fla to play (if you really would rather download a file than copy 15 lines of code).

Resolution

Well, I’ll be playing with this code and others and posting the experiments with some screenshots of what I create get’s created.

Video Player 4 introduces interactive playlists, social sharing and more

video player 4 hero shotI’ve been busy hardening and improving my video player lately and had so many updates for it I decided to upload it to activeden as a new file altogether. After some final bug fixes and testing it’s been approved for sale. I think it’s a huge improvement over the last video player. The video playing part is mainly the same (with a few small adjustments for better usability), but I’ve added tons to this update. It’s online at activeden for live preview and purchase.

An extensively customizable yet simple video player. Create and manage play lists for you video delivery as well as allow viewers to share and socially bookmark the video. Integrate the video into your user experience with javascript integration as well as Google Analytics tracking on the video interaction! Control functionality, layout and colors of the player easily! Plus don’t sweat the embed codes – an embed code generator included!

Check out the legend graphic for some views of the player and the different panes. There is the full video view, the playlist, share and detail panes. You can also view them all in fullscreen mode.

circlecube video player 4 legend

This new player has the following updates:

  • Includes an embed script generator built specifically for this video player! Embed script generator with a Live Preview!
  • Use an external xml playlist or set playlist values in flashvars settings. (No need for xml if you don’t want it)
  • Social Bookmarking with facebook, twitter, delicious, google buzz & linkedin
  • Send emails through the player to share the video with friends
  • Google Analytics Integration (event tracking) – Uses your analytics account on a per video setting in flashvars.
  • All colors fully customizable in flashvars or xml
  • Display video title and description – html content (may contain links) in the detail pane.
  • Video controls also in context menu (right-click menu)
  • Loop the video once, twice however many times you wish and even infinitely!
  • Disable tooltips completely if you wish
  • Keyboard shortcut integration! Press the space bar to pause/play the video just like in most video playback programs.
  • Volume setting cached across sessions for a better user experience
  • Double click video for fullscreen

As well as all that made version 3 video player great as well:

  • Supports flv, f4v and any container format using H.264: mp4, m4a, mov, mp4v, 3GP, 3G2.
  • All images and video loaded externally
  • Run this player without additional files, just pass in the flv path.
  • Supports most image file types: jpg, gif, png.
  • Google Analytics Integration (event tracking) – Uses your analytics account on a per video setting in flashvars.
  • Load any dimension video. Completely resizable
  • Set player width and height
  • Set video width and height
  • Full screen capabilities
  • All colors fully customizable
  • Use a preview/thumbnail image.
  • Auto play option
  • Auto load option – in case you had a bunch of video on one page you wouldn’t want them all to auto load.
  • Video scale/stretching options: none, exact, uniform, fill.
  • Javascript callback functions for loading video and finishing video playback.
  • Show/hide a big play button over the video option
  • Show/hide “vcr” video player controls or have them auto-hide
  • Advanced volume controls, click to mute or drag to desired volume. Volume fades rather than cuts.
  • Support for a logo
  • Controls auto-hide
  • Time code display in current time or elapsed time. click to toggle
  • Tooltips for controls
  • Send video files to player dynamically with javascript integration (with an html link on a page send a video to play)
  • Replay video after complete
  • Progressive play and load displays. Watch as the video loads and see the scrub bar update as you watch.
  • Scrub bar is interactive click and drag. Tooltip to display hovered time.
  • Animated play controls.
  • Buttons states & tooltips.
  • All player graphics are vector shapes and very small in size.
  • Fully rearrange player controls
  • Option to disable fullscreen
  • Display video title and description – html content (may contain links)

Here’s a screenshot of the embed code generator:

embed generator preview

circlecube Relaunch

Not just a redesign but a whole new site and location! After having built loads of sites for clients/friends I kept learning things I wanted to employ on my own site, but the cobblers kids are always barefoot right? I kept implementing new things and knew that they were making my clients lives easier and I wanted it easier as well.

circlecube logo
I’d already updated my logo a number of times since my last redesign and I wasn’t happy with how my collection of sites all looked different and required repetitive work to maintain. circlecube-sketch-3Well, I did some sketches and committed to working on it just a few minutes a day. I really work best as I visually think through a design so sketching is always the first step in my designs. After I nailed down the basic elements and concepts I needed in the site through sketches I installed a new wordpress site, the thematic framework and then got started on a child theme. I really surprised myself and in a mere couple weeks I had a short list of things to do before I could “flip the switch”. The hardest part by far was trying to do 301 redirects from all the old posts which lived on either my blog or portfolio sub-domains. But thanks to my friend we were able to iron that out and I learned more than I ever wanted to know about mod rewrites and such. I was able to combine my blog and portfolio and my home page all into one site. I always felt weird pushing friends/potential clients and everyone else to my blog or my landing page or portfolio… but now they can all simply go to the same place!

circlecube-sketch-1My goal was to enable all content to be updated in the back-end, I didn’t want any content in the theme. And I didn’t want to have to redo the css or layout to move something from the header to the footer or sidebar for example. I placed a lot of content in widgets and a few pages that were wholly widget areas. I also needed a portfolio section that displayed a little gallery of images and possibly flash content automatically. It needed to be easy if I were going to ever update the portfolio, so I used custom post types and custom fields to attach images and other data to each portfolio item. Then one of my favorite pages is the social page, it’s just a collection of my social feeds all displayed neatly in one place.

While I’d love to release the theme for everyone, I cheated and used quite a few plug-ins to accomplish my designs so the theme itself doesn’t include all the functionality and I’m pretty sure it’s bad for to require plug-ins and set up to get a theme functional, but if you’re interested, let me know.

As usually happens though, I learned some more tricks as I built this site. So I have a list of things I’m ready to write and share about on the blog: custom post types, custom taxonomies, thematic customizations, css tricks, fancybox, custom fields, jquery, widgets, htaccess, importing/exporting wordpress, new favorite plug-ins and more… So be excited!

My only regret so far is the lack of texture on the site so I may come back and apply slight noise to the site background to make it more tangible. But I also like the clean look. Well, to see snapshots of the site I added the circlecube redesign to the portfolio section of this site (cheesy to include my own site in my portfolio? yep, but I’m excited to use the feature and I always retrospectively wish I’d documented site updates).

Still, there may be a few things that don’t fully connect, so please, please let me know if you see anything broken or experience a broken link. But stay tuned for some posts since I’m not spending time building the site I’ll put a little time each day into putting content on the site again.

Circelcube Video Player 3.0 Stock Flash Video Player at ActiveDen

hero-image

My latest stock flash video player of mine was just added to the database of stock flash items at activeDen. Go check it out and if you like it, download it for use in your projects! I’ve got lots in it for you. I’m using the principles I used as the architect for the video player for stomperNet and then at cornerstone media group in this decked out video player. Go get circlecube’s awesome stock flash video player.

circlecube-video-player-3-preview

An extensively customizable yet simple video player. Integrate the video into your user experience with javascript integration as well as Google Analytics tracking on the video interaction! Control functionality, layout and colors of the player easily! Plus don’t sweat the embed codes – an embed code generator included!

Let your video be the focus!

Features

  • Includes an embed script generator! With options for swfobject implementation or simple valid html object tags (or both)!
  • Embed generator makes setting your settings easy with a Live Preview!circlecube-video-embed-preview
  • Supports flv, f4v and any container format using H.264: mp4, m4a, mov, mp4v, 3GP, 3G2.
  • All images and video loaded externally
  • Run this player without additional files, just pass in the flv path and thumbnail path.
  • Supports most image file types: jpg, gif, png.
  • Google Analytics Integration (event tracking) – Uses on page analytics account or a specified account on a per video setting in flashvars.
    analytics-overview
  • Load any dimension video. Completely resizable
  • Set player width and height
  • Set video width and height
  • Full screen capabilities
  • All colors fully customizable in flashvars
  • Use a preview/thumbnail image.
  • Auto play option
  • Auto load option – in case you had a bunch of video on one page you wouldn’t want them all to auto load.
  • Supports Window Mode options. window, transparent, opaque
  • Video scale/stretching options: none, exact, uniform, fill.
  • Javascript callback functions for loading video and finishing video playback.
  • Show a big play button over the video
  • Show/hide “vcr” video player controls
  • Advanced volume controls, click to mute or drag to desired volume. Volume fades rather than cuts.
  • Support for a logo
  • Controls auto-hide
  • 60k file size
  • Time code display in current time or elapsed time. click to toggle
  • Tooltips for controls
  • Send video files to player dynamically (with an html link on a page send a video to play)
  • Replay video after complete
  • Progressive play and load displays. Watch as the video loads and see the scrub bar update as you watch.
  • Scrub bar is interactive click and drag. Tooltip to display hovered time.
  • Animated play controls.
  • Buttons states & tooltips.
  • All player graphics are vector shapes and very small in size.
  • Fully rearrange player controls
  • Option to disable fullscreen
  • Display video title and description – html content (may contain links)
  • Video controls also in context menu

legend-image

Cornerstone Media Group | Atlanta Web Design

csmediagroup redesignI’ve joined Cornerstone Media Group of Atlanta as the Senior Web Designer and Front-End coder! A bit stale as far as news goes, I’m going on 6 months already. The reason I bring it up now is that we’ve just relaunched our website. This new look is not just about new appearances and aesthetics, it is about a new approach. The redesigned website has new features that make the user experience easier and more intuitive. There is a dynamic portfolio and the company blog is tied more into the site and more into the business. Most employees are signed on as an author on the blog. We’ll do our best to flood the inter-web with good content related to what we do and our expertise. Three of our most popular business solutions now are highlighted buttons that can take you straight to landing pages with more in depth information on each solution; SEO, Web Design and E-Commerce. The redesigned website offers a freshness that comes with change. We hope you enjoy your new experience at cornerstone. If you’re in need of any web services chances are we’ll have a solution at CSMediaGroup.

Tutorial to Create a Responsive Image Scroller in ActionScript 3.0

responsive-images-scroller-as3-thumb

I’ve written a tutorial which is published over at flash.tutsplus. This tutorial demonstrates how to create a horizontally scrolling image viewer and covers xml parsing, loading and resizing external images, and creating intuitive and responsive scrolling!

[kml_flashembed publishmethod=”dynamic” fversion=”9.0.0″ movie=”https://circlecube.com/circlecube/wp-content/uploads/sites/10/2009/07/image-scroller-example.swf” width=”550″ height=”137″ targetclass=”flashmovie”]

Get Adobe Flash player

[/kml_flashembed]

So check out the Tutorial to Create a Responsive Image Scroller in ActionScript 3.0 over at flash.tutsplus.com!

sourcedemomilestone

You’ll find full source code available for download as well as the demo files and step by step milestones all throughout the tutorial.
