Flash Gaming Technology – Notes from Lee Brimelow’s Adobe Presentation

Here are my notes on the presentation from Lee Brimelow of Adobe at the Atlanta Adobe Users Group Meeting: http://www.meetup.com/Adobe-User-Group-of-Atlanta/events/56200162/

What is flash for? Doing things the browser can’t! If you can use HTML5 then do it. Learn about it and learn the capabilities and know when to use what tool and when they are appropriate. It might not be easy, but it is where the industry is moving, don’t hide from it! If you want to do things that are to advanced for the current standards and browsers, then flash is most likely where you need to be. Adobe will always position Flash to be ahead of what is possible with browsers.

While you can do some gaming in browsers today, flash is now positioned to be the best solution for game development. It even can compile to native apps for ios and many successful apps have done so. Adobe has put in a site to showcase these games at: http://gaming.adobe.com

Adobe has a new partnership with unity. See example game: Angry bots.

Console sales are declining. We have so many other outlets to game: browsers, social, mobile devices… Soon professional games will be via Facebook and browsers.

Facebook angry birds game built in flash using stage 3D.

New gaming features:
Mouse lock.
Right and middle click events.
Concurrency, multi threading for player. Yo will not lock up with intense calculations.
Native extension Burls and extensions.

CS6:
Sprite sheet exporter!
Create js exporter, via Grant Skinner
Html 5 export to canvas a vector art.

Edge

11.3 – latest flash player
full screen keyboard input.
Background auto updates.
Audio streaming via net stream.
Improvements for low latency audio.
Stage 3D progressive texture streaming.
Lzma compression sort door byte array.
Native bitmap encoding to png and jpg.
Bitmap data draw with quality
Frame labels.

Air specific
USB debugging for ios
Native ios simulator support
Enhanced background support for ios
Android 4 stylus support
Mac app store support

Dolores, upcoming updates
As workers
Advanced profiling
Better sort for hardware accelerated video cards

Next
Refactorizing code base
Work on as virtual machine
Many action script language updates: stringent static typing as default, hardware oriented numeric types, type inference…

Flash Roadmap Update – Notes from Mike Chambers’ Adobe presentation

Here are my notes on the presentation from Mike Chambers of Adobe at the Atlanta Adobe Users Group Meeting: http://www.meetup.com/Adobe-User-Group-of-Atlanta/events/56200162/

Honestly, the announcement from Nov was handled horribly, it was a mess. Adobe has learned a lot and there have been many changes since then to keep this from happening again. They are really pushing transparency and have begun publishing white papers that explain the flash roadmap and explain plans and commitments.

These white papers put out by Adobe is definitive resource for flash. http://www.adobe.com/go/flashplatform_whitepapers

Flash runtimes is one shared core player. Flash player and adobe air both share same core.

Flash has filled many niches: animation, video, applications, games, rich media, art (Flash as an expressive medium).

While none of these functions are going anywhere, HTML5 is bringing a lot of this capability to browsers natively.

Adobe will now focus on advanced video and gaming in Flash as they are the areas that aren’t possible in web standards.

Introducing Premium features – set of features in API available for licensing. Only example for now is Stage3D used in conjunction with domainMemory API.

“I’m doing this for the love of flash, everyone else is doing it for the money” – Mike Chambers

The funding for the flash player is contradictory since more tools to publish to flash player have come out, it draws resources and funding away from flash player. This revenue sharing model allows for the player to remain funded in the current flash ecosystem.

Linux: Ppapi = pepper codename for browser plugin API which will let the player do it’s thing rather than worry about browser and OS. Working with google chrome on Linux already.

Windows 8: working closely with Microsoft to have support for flash player and air on Windows 8.

All updates will be added to the white paper (link above) along with the 2 year roadmap.

Thanks for visiting ATL and working on making this well understood and making Flash even better. I’m Always a fan of using flash when it’s the right tool for the job.

Interactive Physics Animations Javascript Canvas 06

Here we’re going to get more into the interactive programming on these dots. We started with one dot that was draggable. This update applies a drag/drop code to each dot object with some logic to keep track of which dot is being dragged. This is quite a bit different than accomplishing the same thing in flash. Flash lets us have visual objects, but here in javascript we have all these objects and they are drawn on the stage/canvas every “frame”. The elements once drawn really don’t have any properties. So we’re attaching mousedown, mouseup and mousemove events to the canvas. In flash we would be applying a click event to the objects themselves. On mousedown we check coordinates to see if we’ve clicked on any of the dots. We also need a variable to store which one is being clicked or dragged at the moment, and this is pretty easy since we set up earlier to have an array holding all our dots, we’ll just use the index of that dot. With mousemove we drag the dot that’s been clicked using that index value, and then mouseup we drop it. interactive physics animations via javascript & canvas | 06.

[cc lang=”javascript”]
$(function () {
var canvas, context, width, height, x, y, radius = 25, clickX, clickY, drag = false;

canvas = $(“#canvas”)[0];
context = canvas.getContext(“2d”);
var dots = new Array();
var drag_i = -1;

var this_dot = {};
for (var i=0; i < 5; i++){ var this_dot = { x: Math.random()*canvas.width, y: Math.random()*canvas.height, width:canvas.width, height: canvas.height, radius:25}; dots.push(this_dot); } draw(); $("#canvas").mousedown(function (event) { var dx, dy, dist; for (var i=0; i < dots.length; i++){ dx = event.pageX - this.offsetLeft - dots[i].x; dy = event.pageY - this.offsetTop - dots[i].y; dist = Math.sqrt(dx * dx + dy * dy); if(dist < radius) { drag = true; drag_i = i clickX = dx; clickY = dy; continue; } } }); $("#canvas").mouseup(function (event) { drag = false; drag_i = -1; }); $("#canvas").mousemove(function (event) { if(drag) { dots[drag_i].x = event.pageX - this.offsetLeft - clickX; dots[drag_i].y = event.pageY - this.offsetTop - clickY; draw(); } }); function draw() { context.clearRect(0, 0, canvas.width, canvas.height); for (var i=0; i < dots.length; i++){ context.beginPath(); context.arc(dots[i].x, dots[i].y, dots[i].radius, 0, Math.PI * 2, false); context.fill(); context.closePath(); } } }); [/cc]Follow the whole Interactive Physics Animations via Javascript & Canvas series.

Interactive Javascript Canvas 00

I’ve played a lot with physics experiments in flash and moving more to javascript and canvas for simple things I wanted to test it out with some physics and animations. I’ve been curious to find out how the performance compares. Obviously this will depend on the browser, but the browsers that do support canvas should be able to handle some interactive physics animations.

I have this project I keep coming back to, it’s been in as2 and then in as3 and has have multiple faces. But the gist is there are a bunch of circles or balls and they float around in a specified area. There are physics “controls” exposed to the user and they can control the velocity of the balls, the gravity, air friction or drag, elasticity and they can even grab a ball and throw it across the stage (canvas). Here are a couple iterations of this: BFA Portfolio, Current Interactive POG Portfolio, Dribbble likes, Lastfm scrobbles.

I’m going to rebuild the basic functionality via javascript. I have had this on my list of things to explore for months now, in fact, ever since I saw Keith Peters go through his month long javascript exploration, he had a specific example that made me think I really needed to do it. I started and then life happened… But now I’m ready to start documenting my progress and trying to share what I’ve learned.

I’ll start with his initial example he titles JavaScript Day 27: Mouse Part II.
View my version here: interactive physics animations via javascript & canvas.

[cc lang=”javascript”]
$(function () {
var canvas, context, width, height, x, y, radius = 25, clickX, clickY, drag = false;

canvas = $(“#canvas”)[0];
context = canvas.getContext(“2d”);
width = canvas.width;
height = canvas.height;
x = width / 2;
y = height / 2;
draw();

$(“#canvas”).mousedown(function (event) {
var dx, dy, dist;
dx = event.pageX – this.offsetLeft – x;
dy = event.pageY – this.offsetTop – y;
dist = Math.sqrt(dx * dx + dy * dy);
if(dist < radius) { drag = true; clickX = dx; clickY = dy; } else { drag = false; } }); $("#canvas").mouseup(function (event) { drag = false; }); $("#canvas").mousemove(function (event) { if(drag) { x = event.pageX - this.offsetLeft - clickX; y = event.pageY - this.offsetTop - clickY; draw(); } }); function draw() { context.clearRect(0, 0, width, height); context.beginPath(); context.arc(x, y, radius, 0, Math.PI * 2, false); context.fill(); } }); [/cc]

A More Interactive Portfolio

I think a portfolio is something that should be very interactive and intuitive. Check out what that has led to: circlecube’s interactive pog portfolio. I’ve been toying with trying to get something that was fun to look at, but also showed some work. Here is a first look at my Interactive portfolio of work which includes physics simulations and many options to play with the presentation of the body of work. Showing it to a friend he said it made him think of pogs (since the thumbnails are round and moving everywhere).

Well, enough, I’ll let you see what you see… Interactive POG Portfolio

The details

Well, if you’re interested, this is the same portfolio that is listed statically on my website. That’s because I’m using amfphp to read my wordpress database and get the custom post type of portfolio and access all the tags, images and details of each portfolio item. I’m using TweenNano from greensock for some of the motion but all the physics is coded in as3. I’m using the slider and switch from Nick Jonas.

Enjoy playing with the settings!

Now I’m thinking of other ways to implement it: specifically hooking into API services like last.fm, dribbble or twitter. Or rebuild it with jQuery and html5!

Interactive Generative Art Series – 08 – multiple lines scalable


Well, so much for blogging each step in my process of creating this generative art series. I took a few steps in this iteration since the last one. But it was all in the spirit of one step. First I wanted to abstract the duplication of each ball/line so that it didn’t require copying blocks of code for each one. The obvious route is to have a var that designates the number of balls which will draw lines, and then loop through creating the desired number and then in the loop function that is executed each frame loop through them again and draw new lines for each one. This was pretty simple, in the end, and I ended up adding quite a few variables to differentiate each line for the others in line width, color variation and position. I also added a few function to help with calculations and updated the alpha values of the lines. The normalize, interpolate and map functions I acquired long ago from kp here, go there to hear his explanation which is much better than any attempt I could make. Thanks Keith!



Then, I had the task of making it more manageable and scalable. Before these edits, the framerate would sink to around 6 in the first 10 seconds of running with more than 3 lines. After some research it seemed the performance suffered mainly because the graphics drawn with transparency had to figure every single line on the stage to determine it’s color values and flash doesn’t do that too efficiently. So the solution was to use the bitmap and bitmapdata objects. Every frame I copy what has been drawn on the stage into a bitmapdata objects and set it to display on the stage instead. This essentially lets flash calculate the alpha values for each line once and then copy it as simple pixel data for later frames. It happens every frame and is in the flush function. It worked better than I had hoped. I could ramp up the number of lines to 40 and still not see any frame rate slowdown in FPS.

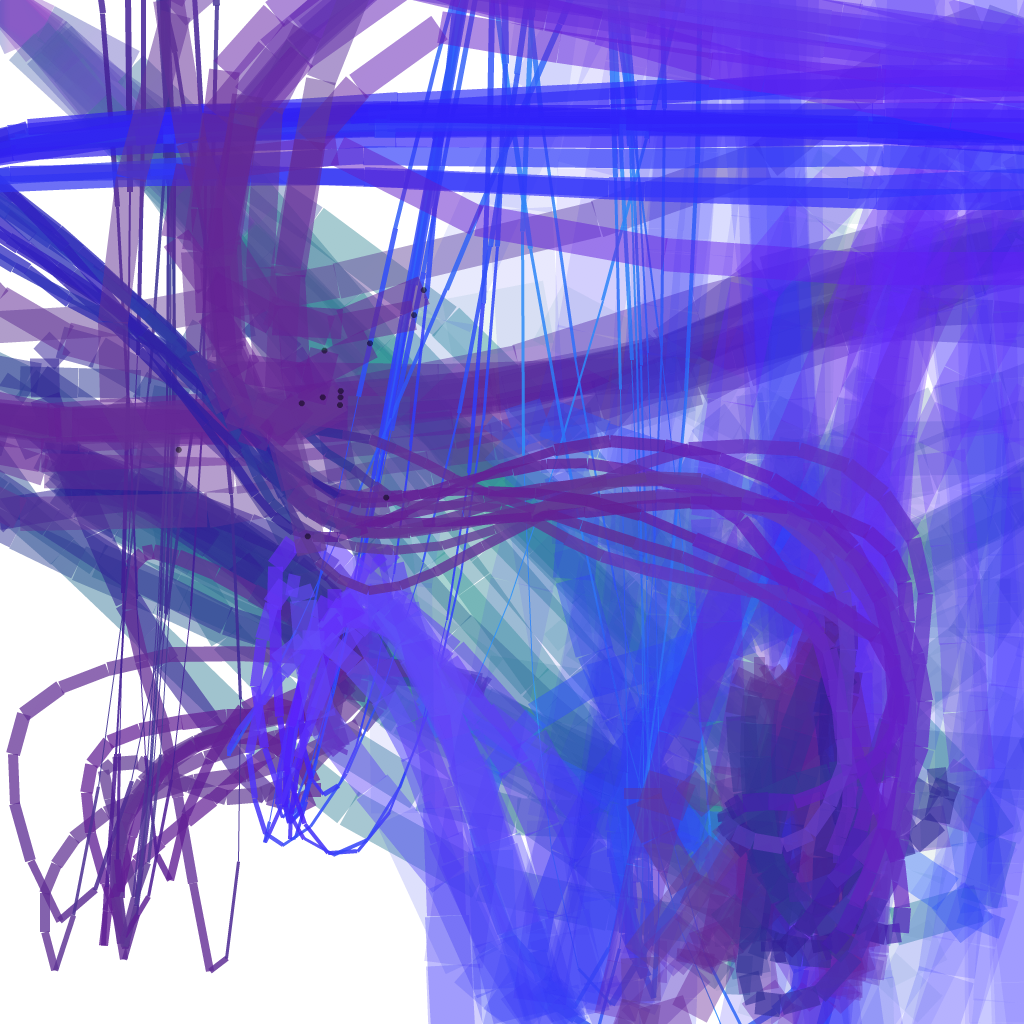

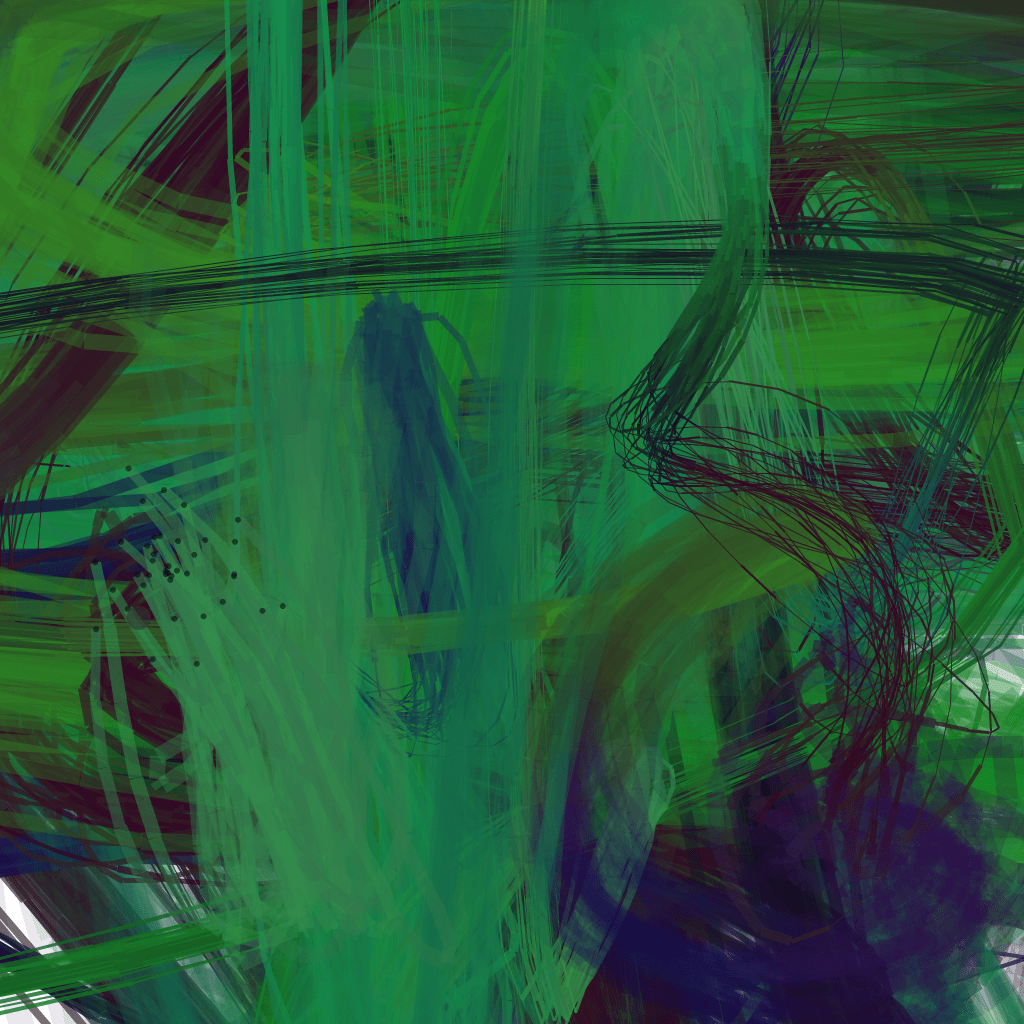

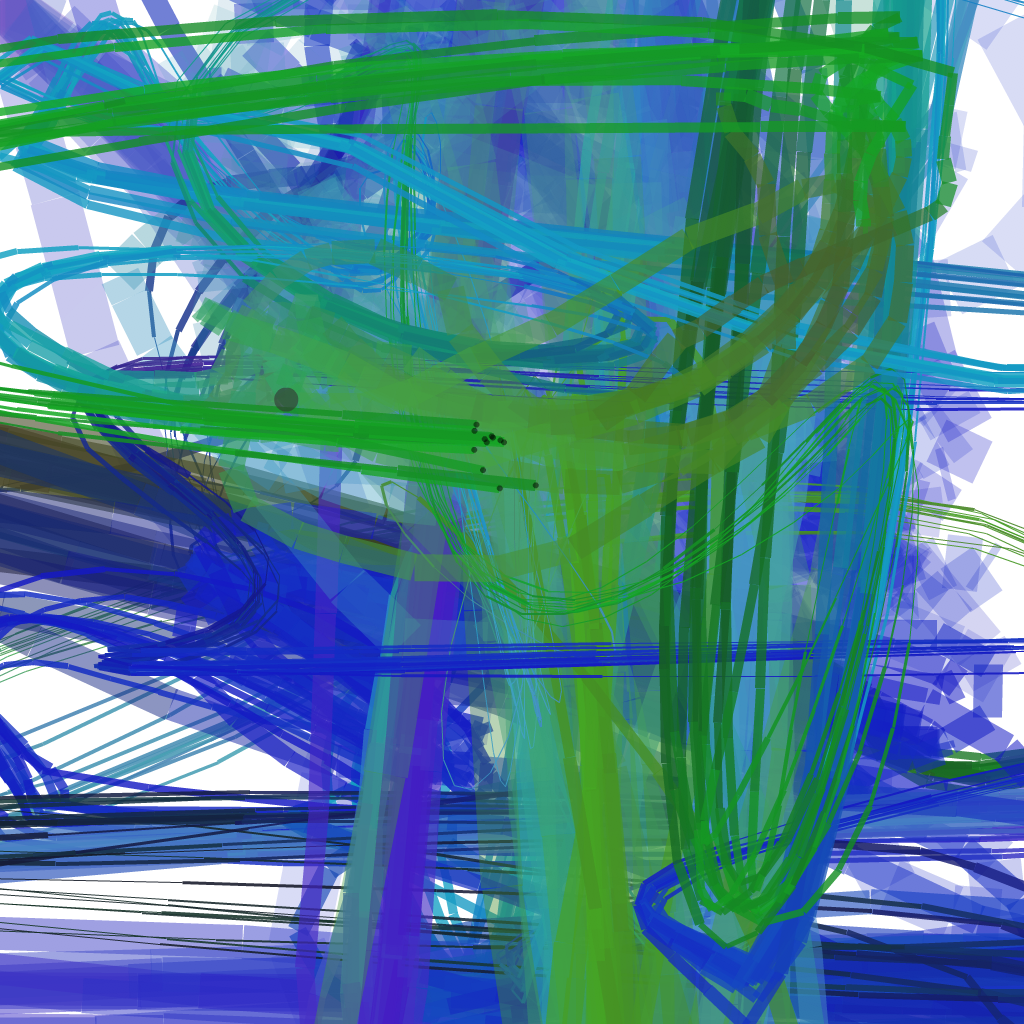

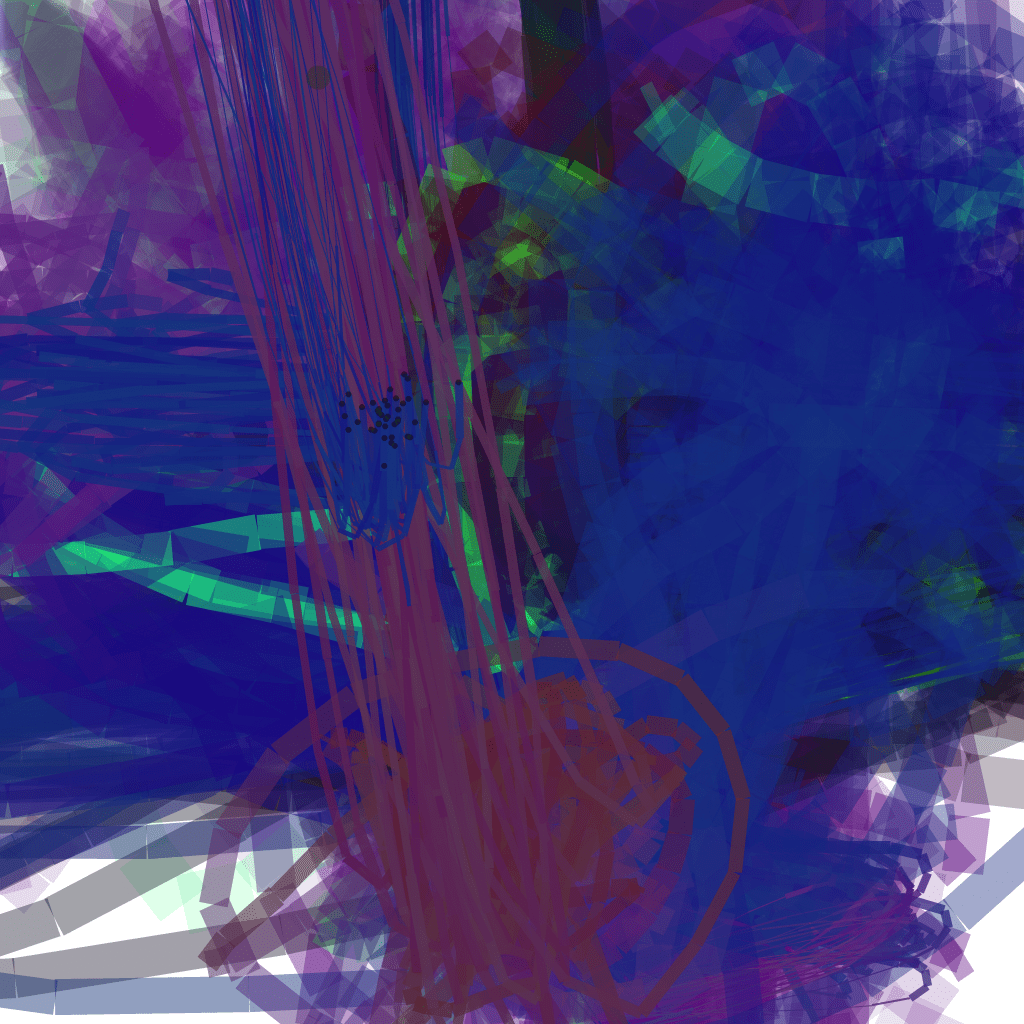

08 multiple lines scalable, play here

[kml_flashembed publishmethod=”dynamic” fversion=”9.0.0″ replaceId=”genart8a” movie=”https://circlecube.com/circlecube/wp-content/uploads/sites/10/2011/03/gen-art-08-multiple-lines-scalable.swf” width=”550″ height=”550″ targetclass=”flashmovie”]

Please visit the blog article to view this interactive flash content. Flash plug-in required: Get Adobe Flash player

[/kml_flashembed]

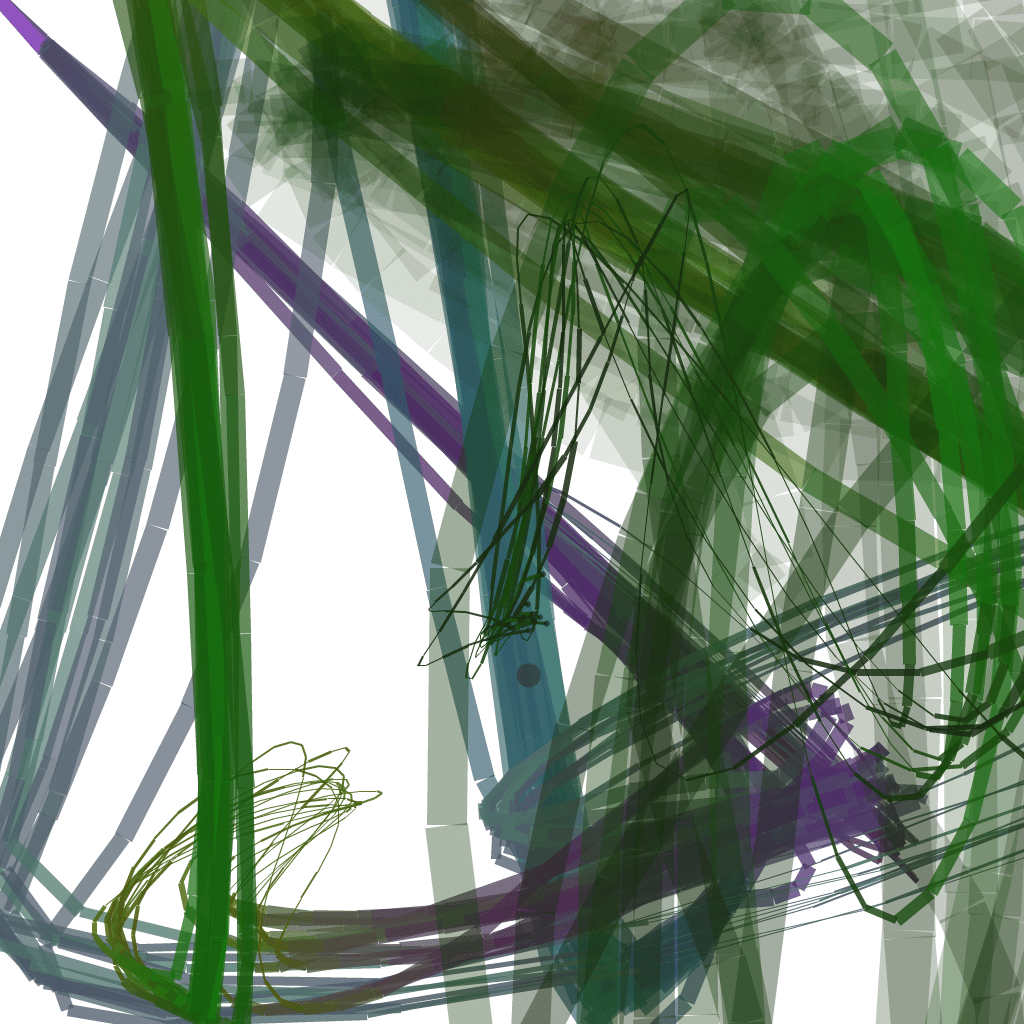

08 multiple lines scalable, another instance

[kml_flashembed publishmethod=”dynamic” fversion=”9.0.0″ replaceId=”genart8b” movie=”https://circlecube.com/circlecube/wp-content/uploads/sites/10/2011/03/gen-art-08-multiple-lines-scalable.swf” width=”550″ height=”550″ targetclass=”flashmovie”]

Please visit the blog article to view this interactive flash content. Flash plug-in required: Get Adobe Flash player

[/kml_flashembed]

actionscript source code

[cc lang=”actionscript”]
var balls:Array = new Array(); // array of ball objects – each ball object stores it’s own position (current & previous), acceleration, etc
var num_balls:int = 0;
var total_balls:int = 12;
var canvas:Sprite = new Sprite();
this.addChild(canvas);

//copy the graphics on stage to a bitmap, then next frame draw on it.
var bitmapcanvasdata:BitmapData = new BitmapData(stage.stageWidth, stage.stageHeight, true, 0x000000);
//draw stage to bitmap
bitmapcanvasdata.draw(canvas);
var bitmapcanvas:Bitmap = new Bitmap(bitmapcanvasdata);
//put bitmap on stage
this.addChild(bitmapcanvas);

function createBall():void{
var ball_o:Object = new Object();

var ball:Sprite = new Sprite();
ball.graphics.beginFill(0x000000, .5);
ball.graphics.drawCircle(0, 0, 3);
ball.graphics.endFill();
addChild(ball);
ball_o.ball = ball;

ball_o.x = randomRangeAxis(10);
ball_o.y = 0;
ball_o.ax = 0;
ball_o.ay = 0;
ball_o.oldx = ball_o.ball.x;
ball_o.oldy = ball_o.ball.y;
ball_o.gradientBoxMatrix = new Matrix();
ball_o.drift = randomRangeAxis(10);
ball_o.color_drift = Math.floor(randomRangeAxis(4)) * 1024;
ball_o.line_width_drift = randomRangeAxis(2);
balls.push(ball_o);
}

for (var i:int = 0; i < total_balls; i++){ createBall(); }var anchor:Sprite = new Sprite();anchor.graphics.beginFill(0x333333, .6); anchor.graphics.drawCircle(0, 0, 12); anchor.graphics.endFill(); addChild(anchor);var div:Number = .1; var line_max_width:Number = 64; var line_min_width:Number = 1; var line_width:Number = randomRange(line_min_width, line_max_width); var line_width_velocity:Number = 0; var dampen:Number = 0.95;var anchorvx:Number = 0; var anchorvy:Number = 0;anchor.x = stage.stageWidth/2; anchor.y = stage.stageHeight/2;var colors:Object = new Object(); colors.r = 150; colors.g = 100; colors.b = 200; colors.rv = 0; colors.gv = 0; colors.bv = 0; colors.rd = 100; colors.gd = 150; colors.bd = 200; colors.rmin = randomRange(0, 30); //0 colors.rmax = randomRange(colors.rmin, colors.rmin + colors.rd); //100 colors.gmin = randomRange(0, 60); //100 colors.gmax = randomRange(colors.gmin, colors.gmin + colors.gd); //200 colors.bmin = randomRange(0, 50); //150 colors.bmax = randomRange(colors.bmin, colors.bmin + colors.bd); //250 colors.rate_of_change = 10; var color_first:Number = 0xFFFFFF; var color_second:Number = rgb2hex(colors.r, colors.g, colors.b);function loop (e:Event = null) { //anchor anchorvx += randomRangeAxis(10); anchorvy += randomRangeAxis(10); anchor.x += anchorvx; anchor.y += anchorvy; anchorvx *= dampen; anchorvy *= dampen; if(anchor.x > stage.stageWidth) anchor.x = 0 – anchor.width;
else if(anchor.x < 0 - anchor.width) anchor.x = stage.stageWidth; if(anchor.y > stage.stageHeight) anchor.y = 0 – anchor.height;
else if(anchor.y < 0 - anchor.height) anchor.y = stage.stageHeight; //linewidth line_width_velocity += randomRangeAxis(1); line_width += line_width_velocity; line_width_velocity *= dampen; if(line_width > line_max_width) {
line_width = line_max_width;
line_width_velocity = 0;
}
else if (line_width < line_min_width) { line_width = line_min_width; line_width_velocity = 0; } //color step color_step(); color_first = color_second; color_second = rgb2hex(colors.r, colors.g, colors.b); //loop through balls and draw lines for (var i:int = 0; i < total_balls; i++){ balls[i].oldx = balls[i].ball.x; balls[i].oldy = balls[i].ball.y; balls[i].ball.x -= balls[i].ax = (balls[i].ax + (balls[i].ball.x - (anchor.x + randomRangeAxis(line_width * balls[i].drift))) * div) * .9; balls[i].ball.y -= balls[i].ay = (balls[i].ay + (balls[i].ball.y - (anchor.y + randomRangeAxis(line_width * balls[i].drift))) * div) * .9; balls[i].dx = balls[i].x - balls[i].oldx; balls[i].dy = balls[i].y - balls[i].oldy; canvas.graphics.moveTo(balls[i].oldx, balls[i].oldy); canvas.graphics.lineStyle(randomRangeAxis(balls[i].line_width_drift,line_width), color_first, 1, true, LineScaleMode.NONE, CapsStyle.NONE); balls[i].gradientBoxMatrix.createGradientBox(Math.abs(balls[i].dx), Math.abs(balls[i].dy), Math.atan2(balls[i].dy,balls[i].dx), Math.min(balls[i].oldx, balls[i].ball.x), Math.min(balls[i].oldy, balls[i].ball.y)); canvas.graphics.lineGradientStyle(GradientType.LINEAR, [color_first + balls[i].color_drift, color_second + balls[i].color_drift], [map(line_width,line_max_width,line_min_width, .1, .9),map(line_width,line_max_width,line_min_width, .1, .9)], [0, 255], balls[i].gradientBoxMatrix); canvas.graphics.lineTo(balls[i].ball.x, balls[i].ball.y); } //copy graphics drawings to bitmapdata and clear graphics flush(); } function flush():void { //draw stage to bitmap bitmapcanvasdata.draw(canvas); //replace bitmapdata of bitmap bitmapcanvas.bitmapData = bitmapcanvasdata; //erase vectors on stage canvas.graphics.clear(); }this.addEventListener(Event.ENTER_FRAME, loop)function rgb2hex(r:Number, g:Number, b:Number):Number { return(r<<16 | g<<8 | b); } function color_step(){ colors.rv += randomRangeAxis(colors.rate_of_change); colors.r += colors.rv; colors.rv *= dampen; if (colors.r > colors.rmax) {
colors.r = colors.rmax;
} else if (colors.r < colors.rmin){ colors.r = colors.rmin; } colors.gv += randomRangeAxis(colors.rate_of_change); colors.g += colors.gv; colors.gv *= dampen; if (colors.g > colors.gmax) {
colors.g = colors.gmax;
} else if (colors.g < colors.gmin){ colors.g = colors.gmin; } colors.bv += randomRangeAxis(colors.rate_of_change); colors.b += colors.bv; colors.bv *= dampen; if (colors.b > colors.bmax) {
colors.b = colors.bmax;
} else if (colors.b < colors.bmin){ colors.b = colors.bmin; } } //random number between min and max function randomRange(max:Number, min:Number = 0):Number { return Math.random() * (max - min) + min; } //random number range centered at 0 with the specified max, randomRange(-max, max) function randomRangeAxis(max:Number, axis:Number = 0):Number { return Math.random() * (max * 2) - max + axis; } //normalize(value, min, max) takes a value within a given range and converts it to a number between 0 and 1 (actually it can be outside that range if the original value is outside its range). function normalize(value:Number, minimum:Number, maximum:Number):Number { return (value - minimum) / (maximum - minimum); } //interpolate(min, max, value) is linear interpolation. It takes a normalized value and a range and returns the actual value for the interpolated value in that range. function interpolate(normValue:Number, minimum:Number, maximum:Number):Number { return minimum + (maximum - minimum) * normValue; } //map(value, min1, max1, min2, max2) takes a value in a given range (min1, max1) and finds the corresonding value in the next range(min2, max2). function map(value:Number, min1:Number, max1:Number, min2:Number, max2:Number):Number { return interpolate( normalize(value, min1, max1), min2, max2); } [/cc]

download

Here’s the gen-art-08-multiple-lines-scalable.swf as well as the gen-art-08-multiple-lines-scalable.fla to download and explore. And as always if you’ve got ideas or suggestions, comment below. One thing I’m struggling with is that now although the experiment is truly generative, it’s no longer interactive.

Interactive Generative Art Series – 07 – multiple lines

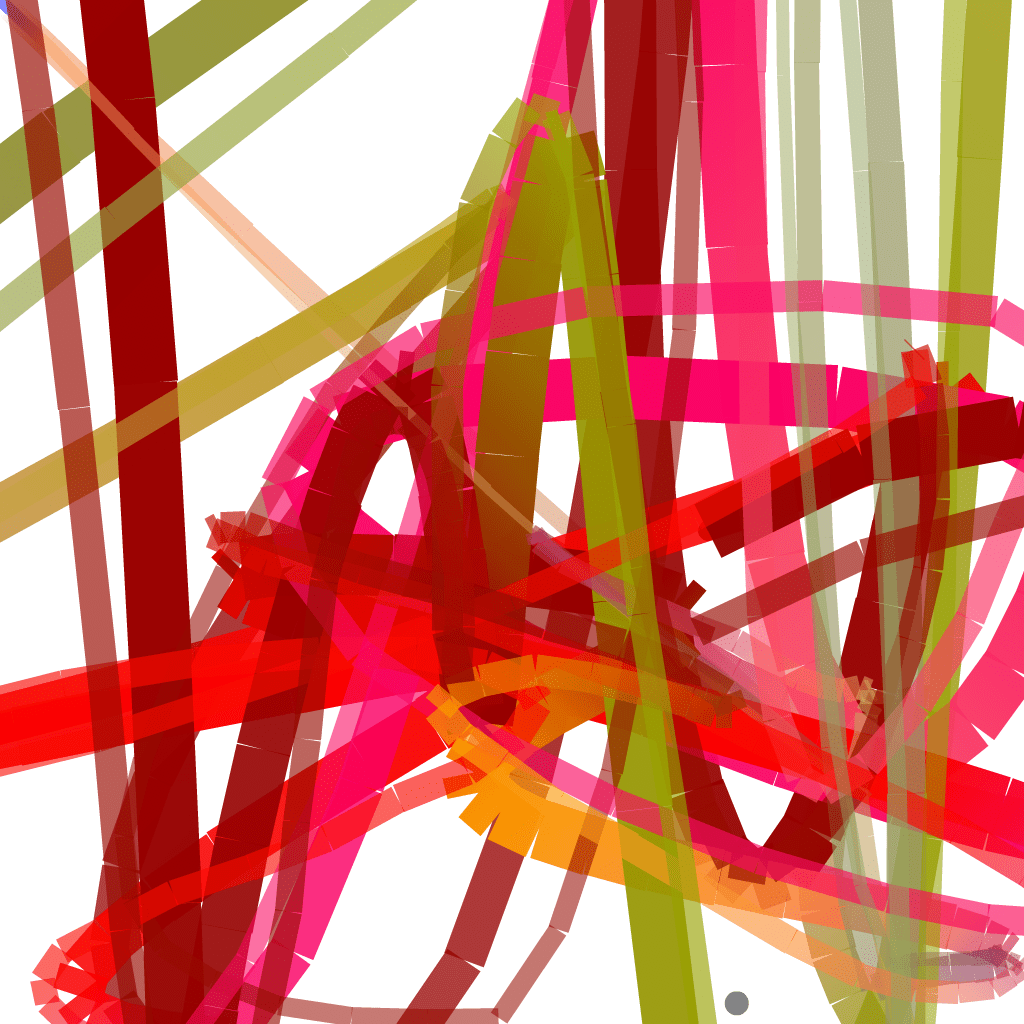

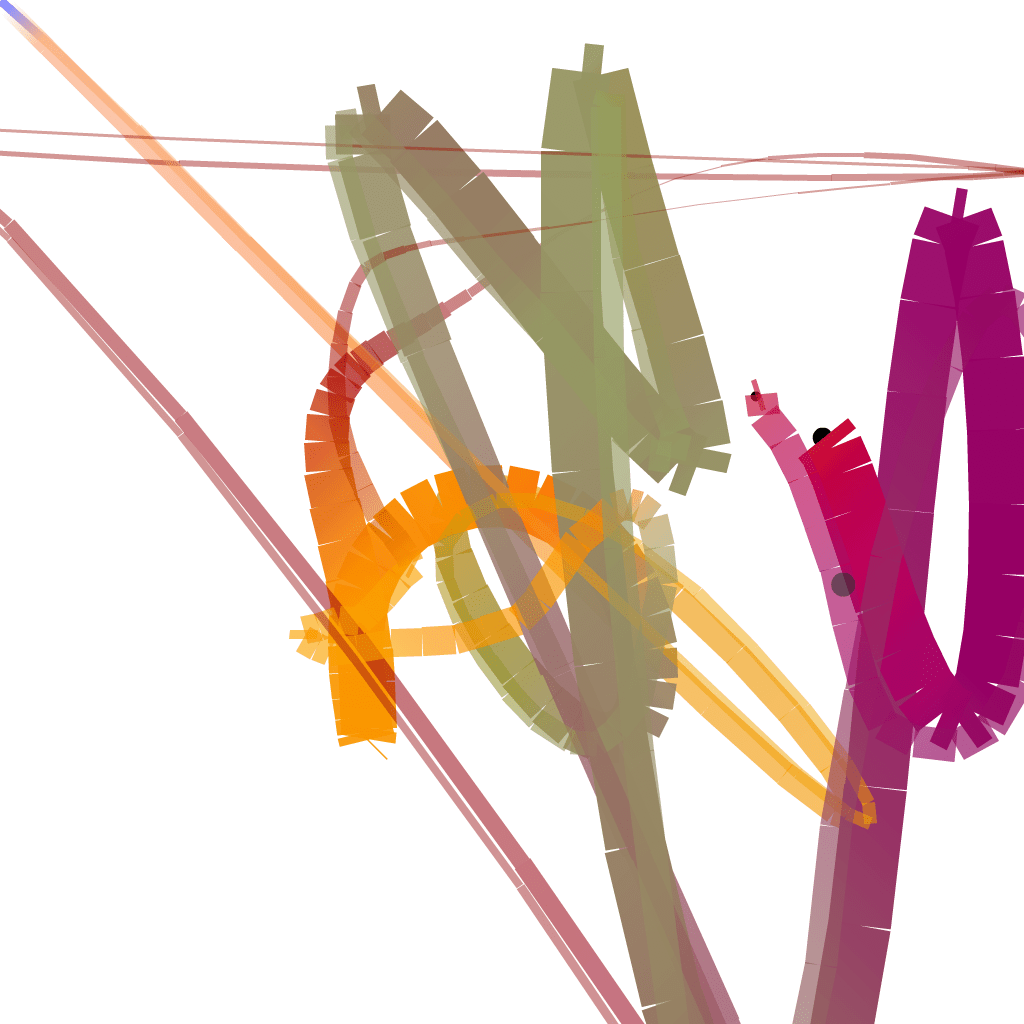

gen-art-multi-lines 01gen-art-multi-lines 02gen-art-multi-lines 03

To make it more interesting and give more depth and texture to the display, I wanted to have more lines than one, so I’m now going with two for starters. Eventually I’d like to get up to a dozen or maybe even have them randomly self populate and die over time. Adding one more isn’t a whole lot of code, but it did require a bit of rearranging. I created a sprite container for each line, and then basically doubled any var used by one line for the other. When calculating the position for the second line I added a bit of randomness, so it wouldn’t be drawn in the exact same position of the first line. Plus, when drawing the second line I adjust the alpha/transparency a bit and the line width. A big issues that I notice right away is that the memory noticeably begins to suffer after a bit of drawing. After some investigation I determined it is (at least in part) the fact that the lines now have to blend with the lines below them with transparency. If I set the alpha properties in the lineGradientStyle to 1 and 1 the performance is much better. Any ideas of how to fix this? I’m guessing I should start investigating bitmap data.

07 multiline, play here

[kml_flashembed publishmethod=”dynamic” fversion=”9.0.0″ replaceId=”genart7″ movie=”https://circlecube.com/circlecube/wp-content/uploads/sites/10/2011/03/gen-art-07-multilines.swf” width=”550″ height=”550″ targetclass=”flashmovie”]

Please visit the blog article to view this interactive flash content. Flash plug-in required: Get Adobe Flash player

[/kml_flashembed]

actionscript source code

[cc lang=”actionscript”]
var ball:Sprite = new Sprite();
ball.graphics.beginFill(0x000000, 1);
ball.graphics.drawCircle(0, 0, 10);
ball.graphics.endFill();
addChild(ball);
var ball2:Sprite = new Sprite();
ball2.graphics.beginFill(0x000000, 1);
ball2.graphics.drawCircle(0, 0, 5);
ball2.graphics.endFill();
addChild(ball2);

var balllines:Sprite = new Sprite();
addChild(balllines);
var ball2lines:Sprite = new Sprite();
addChild(ball2lines);

var anchor:Sprite = new Sprite();

anchor.graphics.beginFill(0x333333, .6);
anchor.graphics.drawCircle(0, 0, 12);
anchor.graphics.endFill();
addChild(anchor);

var div:Number = .1;
var line_max_width:Number = 64;
var line_min_width:Number = 1;
var line_width:Number = randomRange(line_min_width, line_max_width);
var line_width_velocity:Number = 0;
var dampen:Number = 0.95;

var ballax:Number = 0;
var ballay:Number = 0;
var oldx:Number = ball.x;
var oldy:Number = ball.y;
var ball2ax:Number = 0;
var ball2ay:Number = 0;
var old2x:Number = ball2.x;
var old2y:Number = ball2.y;

var anchorvx:Number = 0;
var anchorvy:Number = 0;

anchor.x = stage.stageWidth/2;
anchor.y = stage.stageHeight/2;
ball2.x = randomRangeAxis(10);
var gradientBoxMatrix:Matrix = new Matrix();

var colors:Object = new Object();
colors.r = 255;
colors.g = 255;
colors.b = 255;
colors.rv = 0;
colors.gv = 0;
colors.bv = 0;
colors.rmin = 150; //0
colors.rmax = 250; //100
colors.gmin = 0; //100
colors.gmax = 150; //200
colors.bmin = 0; //150
colors.bmax = 100; //250
colors.rate_of_change = 12;
var color_first:Number = 0xFFFFFF;
var color_second:Number = rgb2hex(colors.r, colors.g, colors.b);

function loop () {

oldx = ball.x;
oldy = ball.y;
old2x = ball2.x;
old2y = ball2.y;

anchorvx += randomRangeAxis(10);
anchorvy += randomRangeAxis(10);

anchor.x += anchorvx;
anchor.y += anchorvy;

anchorvx *= dampen;
anchorvy *= dampen;

if(anchor.x > stage.stageWidth) {
anchor.x = 0 – anchor.width;
}
else if(anchor.x < 0 - anchor.width) { anchor.x = stage.stageWidth; } if(anchor.y > stage.stageHeight) {
anchor.y = 0 – anchor.height;
}
else if(anchor.y < 0 - anchor.height) { anchor.y = stage.stageHeight; } ball.x -= ballax = (ballax + (ball.x - anchor.x) * div) * .9; ball.y -= ballay = (ballay + (ball.y - anchor.y) * div) * .9; ball2.x -= ball2ax = (ball2ax + (ball2.x - (anchor.x + randomRangeAxis(line_width * 2))) * div) * .9; ball2.y -= ball2ay = (ball2ay + (ball2.y - (anchor.y + randomRangeAxis(line_width * 2))) * div) * .9; line_width_velocity += randomRangeAxis(1); line_width += line_width_velocity; line_width_velocity *= dampen; if(line_width > line_max_width) {
line_width = line_max_width;
line_width_velocity = 0;
}
else if (line_width < line_min_width) { line_width = line_min_width; line_width_velocity = 0; } color_step(); color_first = color_second; color_second = rgb2hex(colors.r, colors.g, colors.b); var dx:Number = ball.x - oldx; var dy:Number = ball.y - oldy; balllines.graphics.lineStyle(line_width, color_first, (line_width+100-line_max_width)/100, true, LineScaleMode.NONE, CapsStyle.NONE); gradientBoxMatrix.createGradientBox(Math.abs(dx), Math.abs(dy), Math.atan2(dy,dx), Math.min(oldx, ball.x), Math.min(oldy, ball.y)); balllines.graphics.lineGradientStyle(GradientType.LINEAR, [color_first, color_second], [(line_width+100-line_max_width)/100,(line_width+100-line_max_width)/100], [0, 255], gradientBoxMatrix); balllines.graphics.lineTo(ball.x, ball.y); dx = ball2.x - old2x; dy = ball2.y - old2y; ball2lines.graphics.lineStyle(line_width/2, color_first, (line_width+100-line_max_width)/100, true, LineScaleMode.NONE, CapsStyle.NONE); gradientBoxMatrix.createGradientBox(Math.abs(dx), Math.abs(dy), Math.atan2(dy,dx), Math.min(old2x, ball2.x), Math.min(old2y, ball2.y)); ball2lines.graphics.lineGradientStyle(GradientType.LINEAR, [color_first + 3072, color_second + 3072], [((line_width/2)+100-line_max_width)/100,((line_width/2)+100-line_max_width)/100], [0, 255], gradientBoxMatrix); ball2lines.graphics.lineTo(ball2.x, ball2.y); }setInterval(loop, 1000/30);function rgb2hex(r:Number, g:Number, b:Number):Number { return(r<<16 | g<<8 | b); } function color_step(){ colors.rv += randomRangeAxis(colors.rate_of_change); colors.r += colors.rv; colors.rv *= dampen; if (colors.r > colors.rmax) {
colors.r = colors.rmax;
} else if (colors.r < colors.rmin){ colors.r = colors.rmin; } colors.gv += randomRangeAxis(colors.rate_of_change); colors.g += colors.gv; colors.gv *= dampen; if (colors.g > colors.gmax) {
colors.g = colors.gmax;
} else if (colors.g < colors.gmin){ colors.g = colors.gmin; } colors.bv += randomRangeAxis(colors.rate_of_change); colors.b += colors.bv; colors.bv *= dampen; if (colors.b > colors.bmax) {
colors.b = colors.bmax;
} else if (colors.b < colors.bmin){ colors.b = colors.bmin; } } //random number between min and max function randomRange(max:Number, min:Number = 0):Number { return Math.random() * (max - min) + min; } //random number range centered at 0 with the specified max, randomRange(-max, max) function randomRangeAxis(max:Number, axis:Number = 0):Number { return Math.random() * (max * 2) - max + axis; } [/cc]

download

Here’s the gen-art-07-multilines.swf as well as the gen-art-07-multilines.fla to download and tinker.

Interactive Generative Art Series – 06 – lineStyle

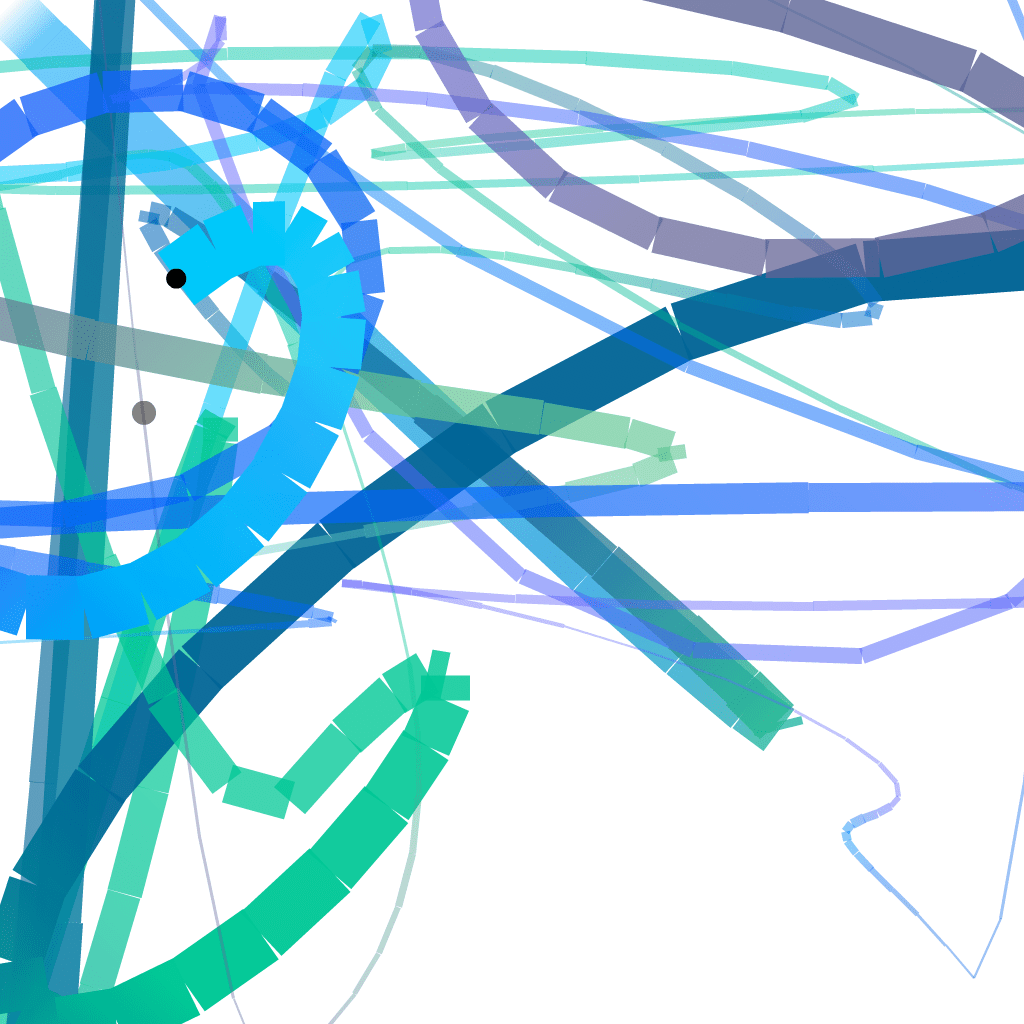

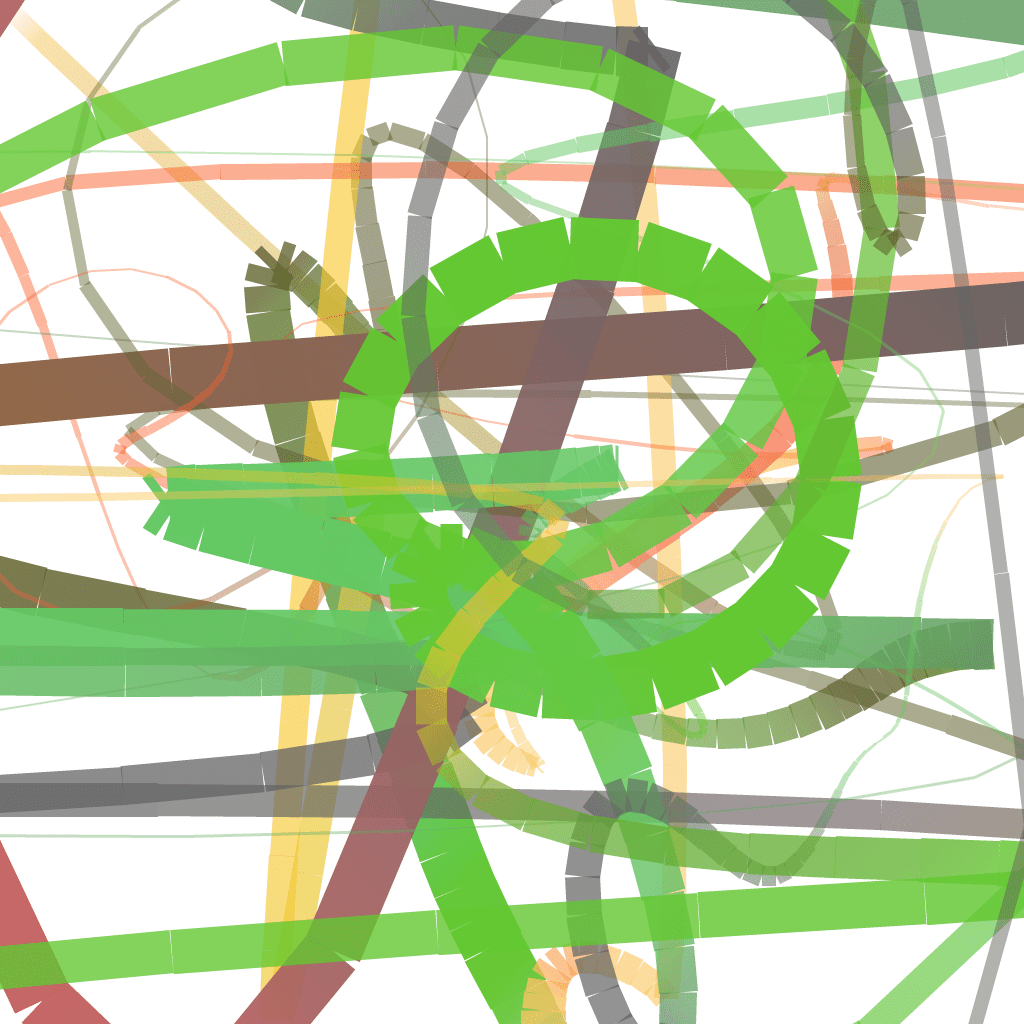

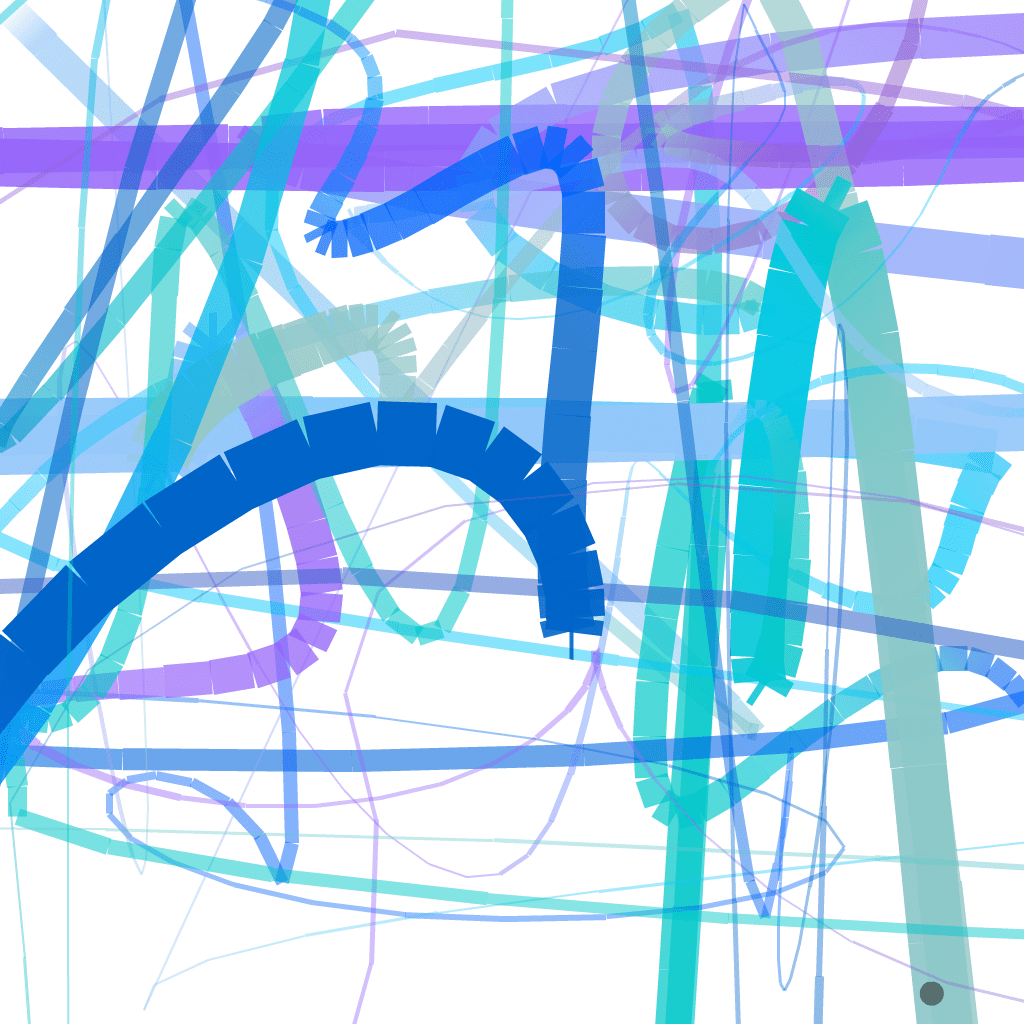

gen-art-06-linestyle-1gen-art-06-linestyle-2gen-art-06-linestyle-3

The last example in this series discussed getting the anchor to move in a way that our ball would paint more interesting and we worked on restricting the colors to a certain RGB range. This one is a very simple change, but has a pretty significant effect. We’re just editing the cap style of our lines in lineStyle. The default value we’ve been using so far is ROUND, but now if we test NONE the lines drawn will have no ends and basically be rectangles (since the width is so wide). This gets interesting especially when the path curves and we can see all the angles and corners exposed by the rectangles and it makes me think of a wooden snake toy (Wooden Wiggle Snake). I started playing around with the opacity or alpha property of the lines as well so that the flat ended lines would show better. What else would you toy with in here?

06 lineStyle, play here

[kml_flashembed publishmethod=”dynamic” fversion=”9.0.0″ replaceId=”gen-art-6″ movie=”https://circlecube.com/circlecube/wp-content/uploads/sites/10/2011/02/gen-art-06-linestyle.swf” width=”550″ height=”550″ targetclass=”flashmovie”]

Please visit the blog article to view this interactive flash content. Flash plug-in required: Get Adobe Flash player

[/kml_flashembed]

actionscript source code

[cc lang=”actionscript”]
var ball:Sprite = new Sprite();
ball.graphics.beginFill(0x000000, 1);
ball.graphics.drawCircle(0, 0, 10);
ball.graphics.endFill();
addChild(ball);

var anchor:Sprite = new Sprite();

anchor.graphics.beginFill(0x333333, .6);
anchor.graphics.drawCircle(0, 0, 12);
anchor.graphics.endFill();
addChild(anchor);

var div:Number = .1;
var line_max_width:Number = 64;
var line_min_width:Number = 2;
var line_width:Number = randomRange(line_min_width, line_max_width);
var line_width_velocity:Number = 0;
var dampen:Number = 0.95;

var ballax:Number = 0;
var ballay:Number = 0;
var oldx:Number = ball.x;
var oldy:Number = ball.y;

var anchorvx:Number = 0;
var anchorvy:Number = 0;

anchor.x = stage.stageWidth/2;
anchor.y = stage.stageHeight/2;
var gradientBoxMatrix:Matrix = new Matrix();

var colors:Object = new Object();
colors.r = 255;
colors.g = 255;
colors.b = 255;
colors.rv = 0;
colors.gv = 0;
colors.bv = 0;
colors.rmin = 0;
colors.rmax = 150;
colors.gmin = 100;
colors.gmax = 200;
colors.bmin = 200;
colors.bmax = 250;
colors.rate_of_change = 12;
var color_first:Number = 0xFFFFFF;
var color_second:Number = rgb2hex(colors.r, colors.g, colors.b);

function loop () {

oldx = ball.x;
oldy = ball.y;

anchorvx += randomRangeAxis(10);
anchorvy += randomRangeAxis(10);

anchor.x += anchorvx;
anchor.y += anchorvy;

anchorvx *= dampen;
anchorvy *= dampen;

if(anchor.x > stage.stageWidth) {
anchor.x = 0 – anchor.width;
}
else if(anchor.x < 0 - anchor.width) { anchor.x = stage.stageWidth; } if(anchor.y > stage.stageHeight) {
anchor.y = 0 – anchor.height;
}
else if(anchor.y < 0 - anchor.height) { anchor.y = stage.stageHeight; } ball.x -= ballax = (ballax + (ball.x - anchor.x) * div) * .9; ball.y -= ballay = (ballay + (ball.y - anchor.y) * div) * .9; line_width_velocity += randomRangeAxis(1); line_width += line_width_velocity; line_width_velocity *= dampen; if(line_width > line_max_width) {
line_width = line_max_width;
line_width_velocity = 0;
}
else if (line_width < line_min_width) { line_width = line_min_width; line_width_velocity = 0; } color_step(); color_first = color_second; color_second = rgb2hex(colors.r, colors.g, colors.b); var dx:Number = ball.x - oldx; var dy:Number = ball.y - oldy; this.graphics.lineStyle(line_width, color_first, (line_width+100-line_max_width)/100, true, LineScaleMode.NONE, CapsStyle.NONE); gradientBoxMatrix.createGradientBox(Math.abs(dx), Math.abs(dy), Math.atan2(dy,dx), Math.min(oldx, ball.x), Math.min(oldy, ball.y)); this.graphics.lineGradientStyle(GradientType.LINEAR, [color_first, color_second], [(line_width+100-line_max_width)/100,(line_width+100-line_max_width)/100], [0, 255], gradientBoxMatrix); this.graphics.lineTo(ball.x, ball.y); }setInterval(loop, 1000/30);function rgb2hex(r:Number, g:Number, b:Number):Number { return(r<<16 | g<<8 | b); } function color_step(){ colors.rv += randomRangeAxis(colors.rate_of_change); colors.r += colors.rv; colors.rv *= dampen; if (colors.r > colors.rmax) {
colors.r = colors.rmax;
} else if (colors.r < colors.rmin){ colors.r = colors.rmin; } colors.gv += randomRangeAxis(colors.rate_of_change); colors.g += colors.gv; colors.gv *= dampen; if (colors.g > colors.gmax) {
colors.g = colors.gmax;
} else if (colors.g < colors.gmin){ colors.g = colors.gmin; } colors.bv += randomRangeAxis(colors.rate_of_change); colors.b += colors.bv; colors.bv *= dampen; if (colors.b > colors.bmax) {
colors.b = colors.bmax;
} else if (colors.b < colors.bmin){ colors.b = colors.bmin; } } //random number between min and max function randomRange(max:Number, min:Number = 0):Number { return Math.random() * (max - min) + min; } //random number range centered at 0 with the specified max, randomRange(-max, max) function randomRangeAxis(max:Number, axis:Number = 0):Number { return Math.random() * (max * 2) - max + axis; } [/cc]

download

Here’s the gen-art-06-linestyle.swf as well as the gen-art-06-linestyle.fla to download and tinker.

Reference

Interactive Generative Art Series – 05 – wild anchor

gen-art-05-wild-anchor-1gen-art-05-wild-anchor-2gen-art-05-wild-anchor-3

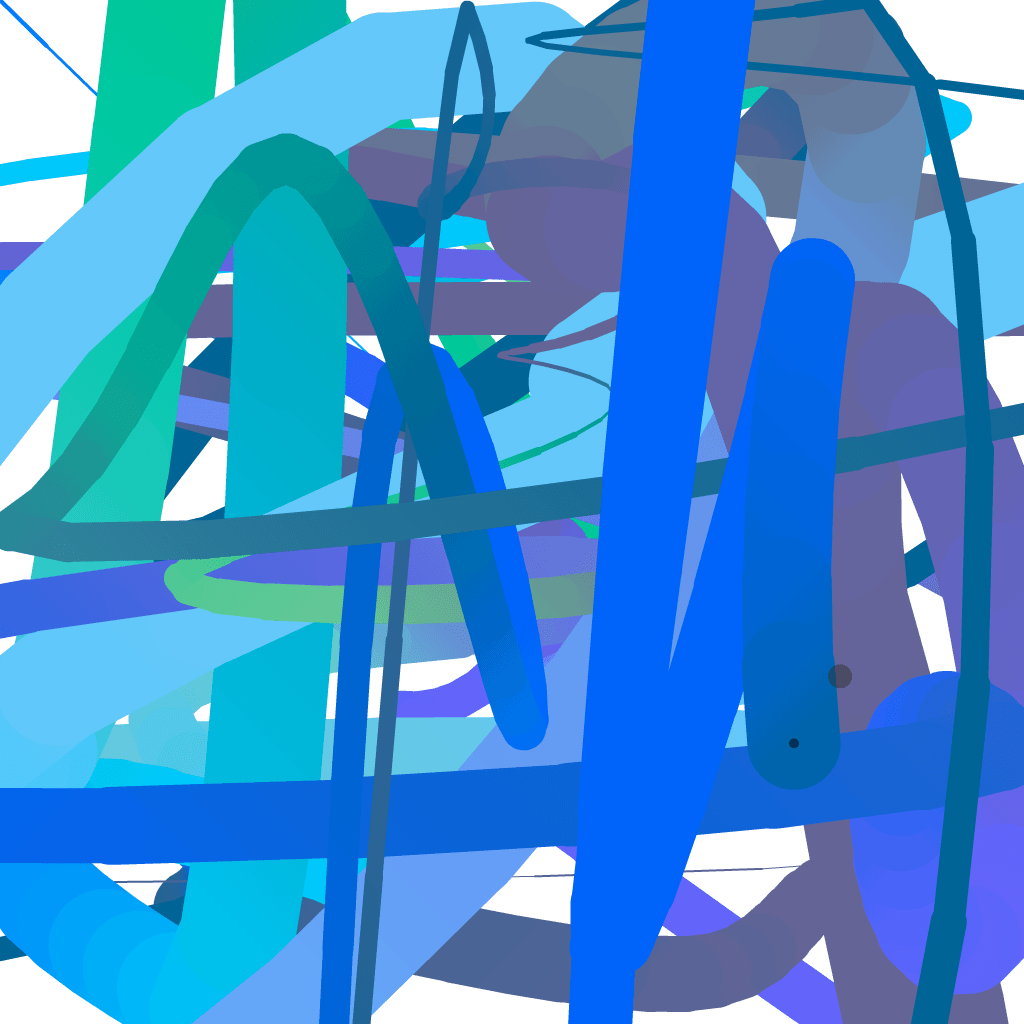

While in the previous step (Generative Art 04 Using a target other than the mouse) in this generative actionscript art tutorial series it was cool to see everything move on it’s very own, it seemed a bit slow or fake, or maybe just plain uninteresting. Tinkering with the color, I thought if we set a minimum and maximum value for each red green and blur we could control the colors a bit more and still let them be generative. Plus I wanted the anchor to move a bit more and thus paint the curves and lines in a more interesting fashion. To do this we ramp up the range of the change rate of the anchor velocity. I really enjoy this example because it is faster, so we get more of those sweeping arcs, but also when the anchor slows down we get some very delicate curves and twists. With just a couple changes from the last example (which frankly seemed a bit chaotic), now I’m starting to see for the first time how to set some controls in the code which will lead to a visually appealing and still randomly generative result.
gen-art-05-wild-anchor-4gen-art-05-wild-anchor-5gen-art-05-wild-anchor-6

For some reason I find it gratifying that the final swf is still a mere 2kb and change. Perhaps all this current focus on HD and 3D gives us the sense that to be good it needs to have a large footprint. Sometimes the magic or value is in how much you can accomplish with less (less is more)

05 Wild Anchor, play here

[kml_flashembed publishmethod=”dynamic” fversion=”9.0.0″ movie=”https://circlecube.com/circlecube/wp-content/uploads/sites/10/2011/02/gen-art-05-wild-anchor.swf” width=”550″ height=”550″ targetclass=”flashmovie”]

Please visit the blog article to view this interactive flash content. Flash plug-in required: Get Adobe Flash player

[/kml_flashembed]

actionscript source code

[cc lang=”actionscript”]
var ball:Sprite = new Sprite();
ball.graphics.beginFill(0x000000, .5);
ball.graphics.drawCircle(0, 0, 5);
ball.graphics.endFill();
addChild(ball);

var anchor:Sprite = new Sprite();
anchor.graphics.beginFill(0x333333, .5);
anchor.graphics.drawCircle(0, 0, 12);
anchor.graphics.endFill();
addChild(anchor);

var div:Number = .1;
var line_max_width:Number = 48;
var line_min_width:Number = 1;
var line_width:Number = randomRange(line_min_width, line_max_width);
var line_width_velocity:Number = 0;
var dampen:Number = 0.95;

var ballax:Number = 0;
var ballay:Number = 0;
var oldx:Number = ball.x;
var oldy:Number = ball.y;

var anchorvx:Number = 0;
var anchorvy:Number = 0;

anchor.x = stage.stageWidth/2;
anchor.y = stage.stageHeight/2;

var colors:Object = new Object();
colors.r = 255;
colors.g = 255;
colors.b = 255;
colors.rv = 0;
colors.gv = 0;
colors.bv = 0;
colors.rmin = 150; //0
colors.rmax = 250; //100
colors.gmin = 0; //100
colors.gmax = 150; //200
colors.bmin = 0; //150
colors.bmax = 100; //250
colors.rate_of_change = 12;
var color_first:Number = 0xFFFFFF;
var color_second:Number = rgb2hex(colors.r, colors.g, colors.b);
var gradientBoxMatrix:Matrix = new Matrix();

function loop () {

oldx = ball.x;
oldy = ball.y;

anchorvx += randomRangeAxis(10);
anchorvy += randomRangeAxis(10);

anchor.x += anchorvx;
anchor.y += anchorvy;

anchorvx *= dampen;
anchorvy *= dampen;

if(anchor.x > stage.stageWidth) {
anchor.x = 0 – anchor.width;
}
else if(anchor.x < 0 – anchor.width) { anchor.x = stage.stageWidth; } if(anchor.y > stage.stageHeight) {
anchor.y = 0 – anchor.height;
}
else if(anchor.y < 0 – anchor.height) { anchor.y = stage.stageHeight; } ball.x -= ballax = (ballax + (ball.x – anchor.x) * div) * .9; ball.y -= ballay = (ballay + (ball.y – anchor.y) * div) * .9; line_width_velocity += randomRangeAxis(1); line_width += line_width_velocity; line_width_velocity *= dampen; if(line_width > line_max_width) {
line_width = line_max_width;
line_width_velocity = 0;
}
else if (line_width < line_min_width) {
line_width = line_min_width;
line_width_velocity = 0;
}

color_step();
color_first = color_second;
color_second = rgb2hex(colors.r, colors.g, colors.b);

var dx:Number = ball.x – oldx;
var dy:Number = ball.y – oldy;
this.graphics.lineStyle(line_width);
gradientBoxMatrix.createGradientBox(Math.abs(dx), Math.abs(dy), Math.atan2(dy,dx), Math.min(oldx, ball.x), Math.min(oldy, ball.y));
this.graphics.lineGradientStyle(GradientType.LINEAR, [color_first, color_second], [1,1], [0, 255], gradientBoxMatrix);
this.graphics.lineTo(ball.x, ball.y);
}

setInterval(loop, 1000/30);
function rgb2hex(r:Number, g:Number, b:Number):Number {
return(r<<16 | g<<8 | b); } function color_step(){ colors.rv += randomRangeAxis(colors.rate_of_change); colors.r += colors.rv; colors.rv *= dampen; if (colors.r > colors.rmax) {
colors.r = colors.rmax;
} else if (colors.r < colors.rmin){ colors.r = colors.rmin; } colors.gv += randomRangeAxis(colors.rate_of_change); colors.g += colors.gv; colors.gv *= dampen; if (colors.g > colors.gmax) {
colors.g = colors.gmax;
} else if (colors.g < colors.gmin){ colors.g = colors.gmin; } colors.bv += randomRangeAxis(colors.rate_of_change); colors.b += colors.bv; colors.bv *= dampen; if (colors.b > colors.bmax) {
colors.b = colors.bmax;
} else if (colors.b < colors.bmin){
colors.b = colors.bmin;
}
}
//random number between min and max
function randomRange(max:Number, min:Number = 0):Number {
return Math.random() * (max – min) + min;
}
//random number range centered at 0 with the specified max, randomRange(-max, max)
function randomRangeAxis(max:Number):Number {
return Math.random() * (max * 2) – max;
}

[/cc]

download

View the swf and get the fla source file.

Interactive Generative Art Series – 04 – anchor

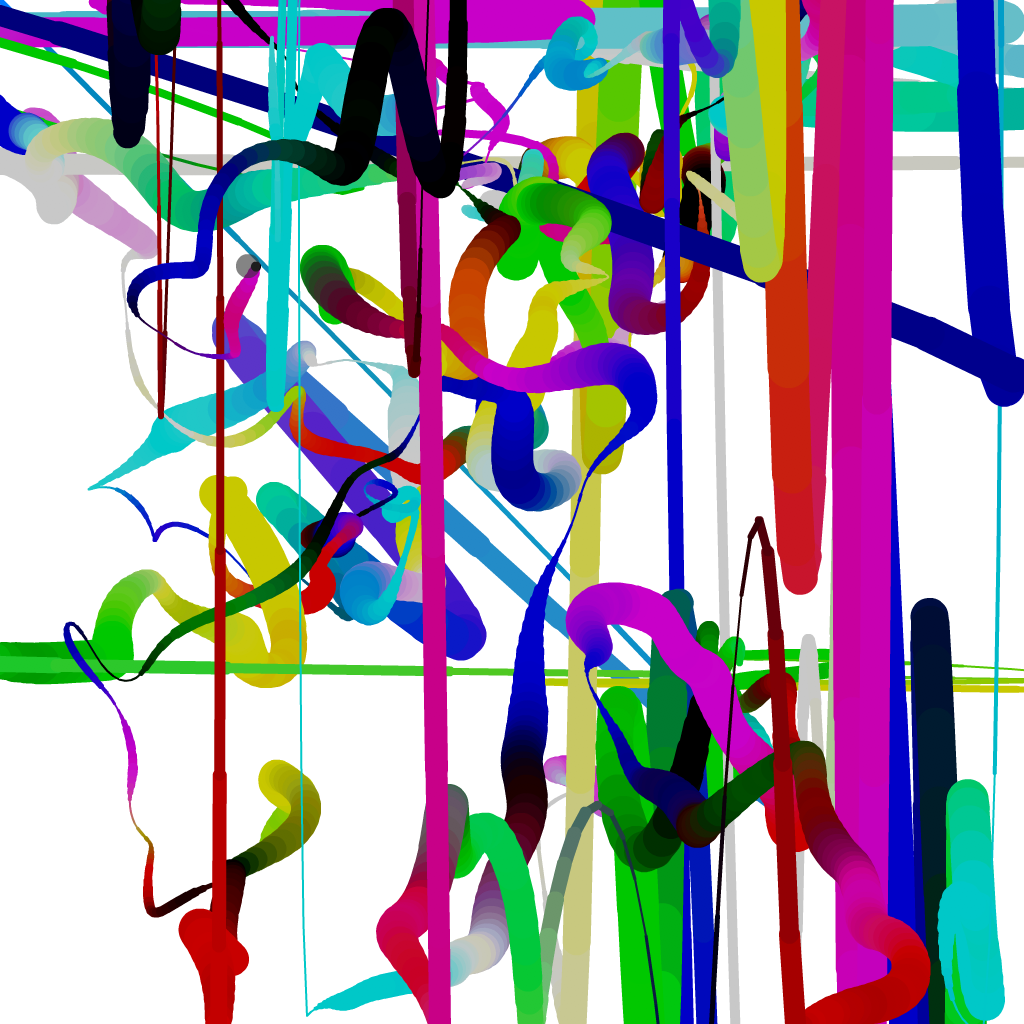

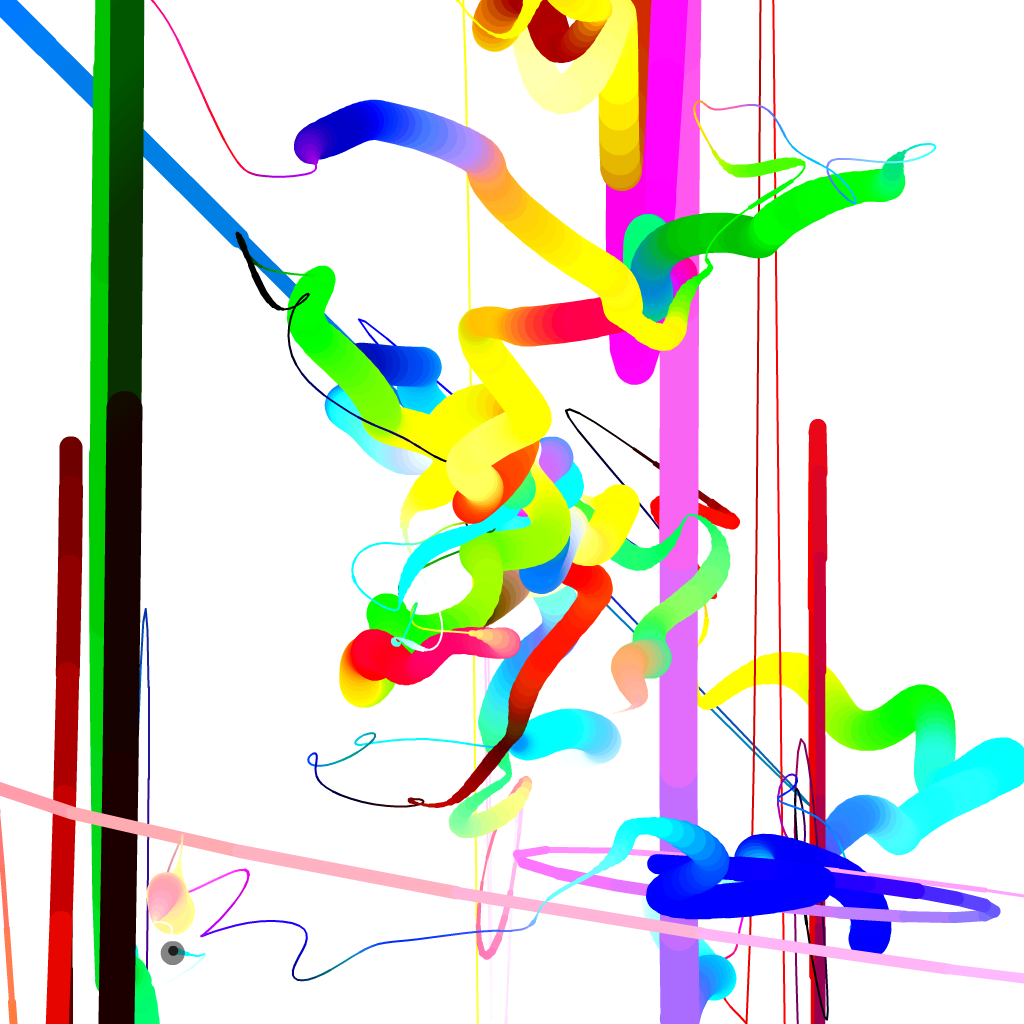

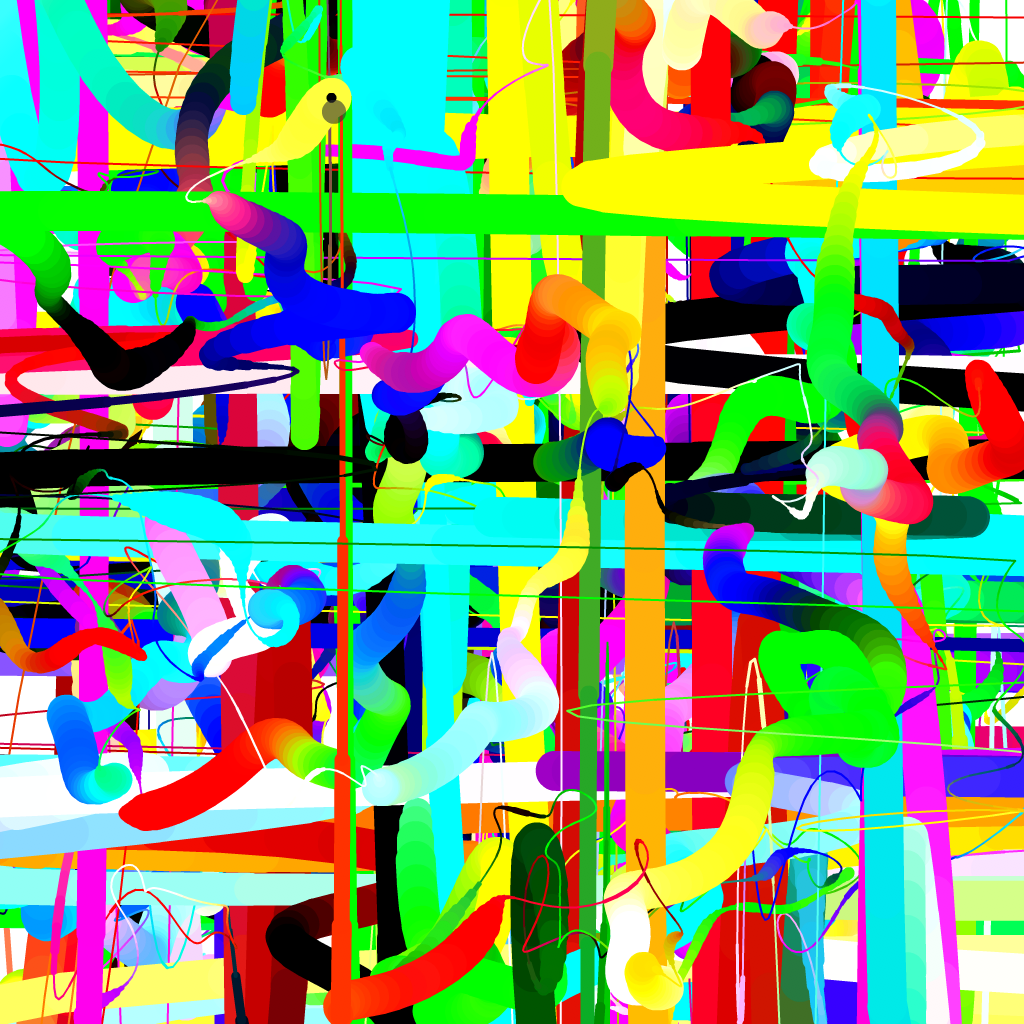

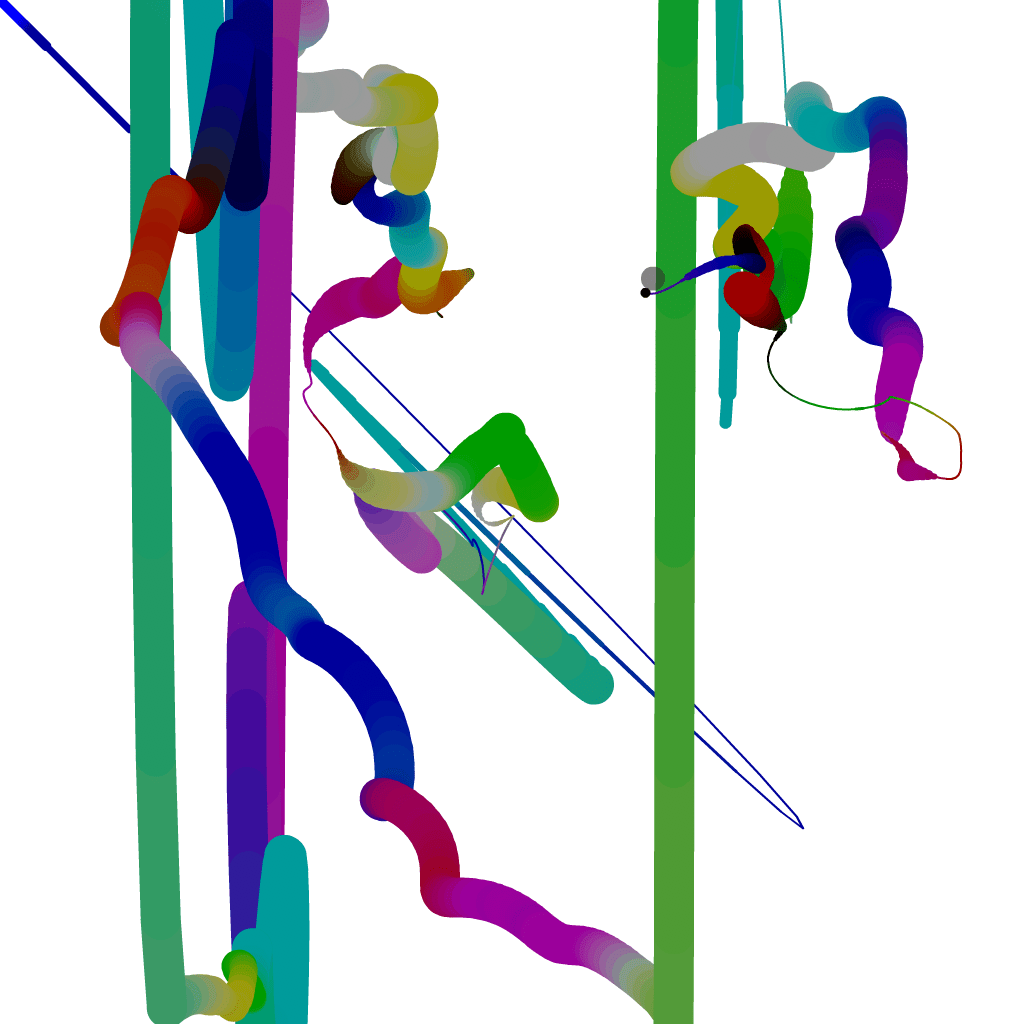

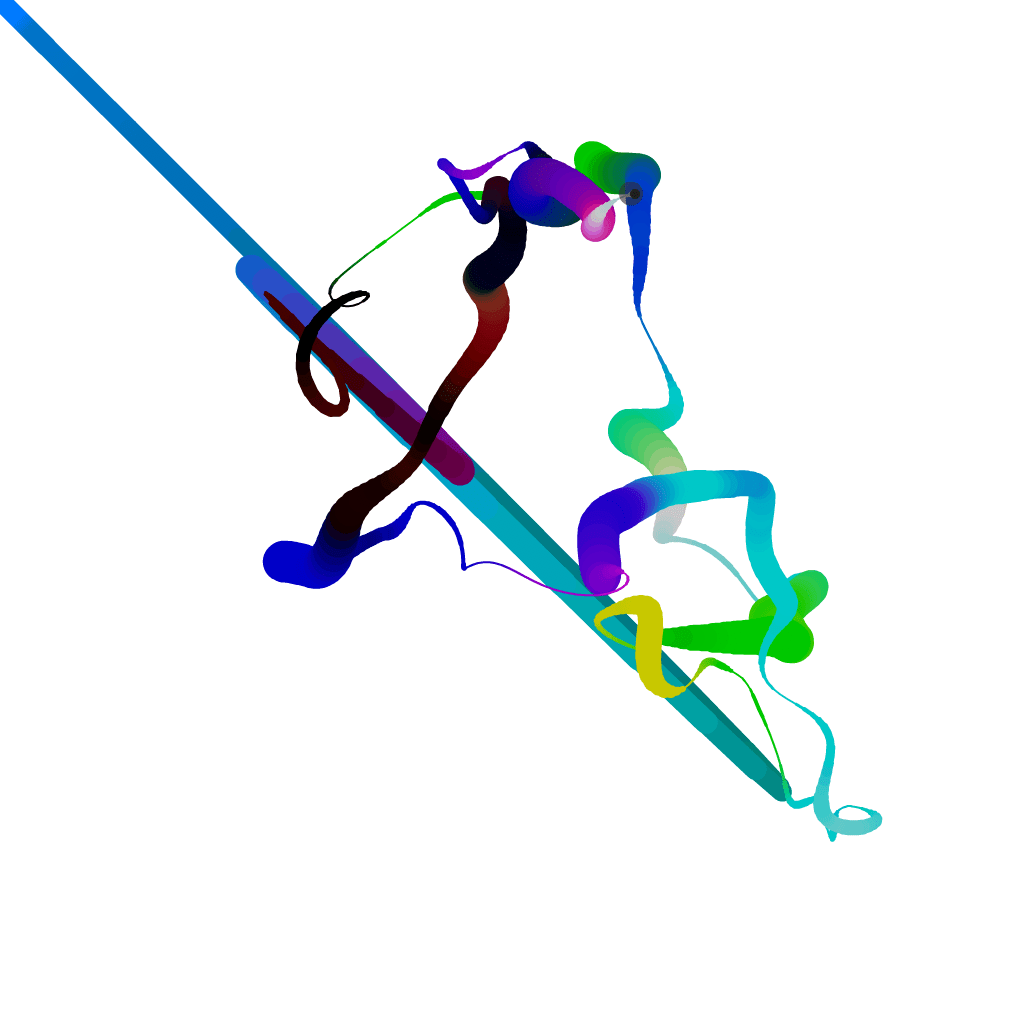

Thanks for keeping up with this random generative art series. I know I’m having a ball just playing with code one step at a time. To watch each iteration, I was getting tired of drawing with my mouse to see the generative art, and as others had pointed out, in order for it to truly be generative, it shouldn’t depend on me moving my mouse. So instead of using the mouse position as my target anchor, I created a new node named anchor. This anchor I’m animating with simple random brownian motion which I’ve blogged about before. It just meanders along the stage as it pleases and the other ball will “chase” it just like it chased your mouse in the previous examples. The part that gets exciting is that my anchor wraps from one side of the stage to the other, while the ball does not. One second it’s target is far right and the next it switches to far left, this makes for some really interesting paths and lines. Experiment with the velocity of the anchor in lines 47 + 48 to see interesting effects. One thing I’m beginning to notice however is the performance of the little app gets a bit slower the longer you let it run, perhaps I didn’t realize it before since I didn’t have the attention to keep moving my mouse and watching it follow, now that it truly is generative (and less interactive btw), I watch it longer (seems kind of backwards to what I’d expect).

Note: in this example I have the anchor ball visible, as well as the other ball, but for an actual production, I’d have them both hidden and the lines just appearing. I prefer it that way but though you’d better see what was actually happening with them visible, even though it kills some of the magic. It’s like watching a magic trick when you already know how it’s done.

04 Anchor, play here

[kml_flashembed publishmethod=”dynamic” fversion=”9.0.0″ replaceId=”gen-art-4″ movie=”https://circlecube.com/circlecube/wp-content/uploads/sites/10/2011/02/gen-art-04-anchor.swf” width=”550″ height=”550″ targetclass=”flashmovie”]

Please visit the blog article to view this interactive flash content. Flash plug-in required: Get Adobe Flash player

[/kml_flashembed]

actionscript source code

[cc lang=”actionscript”]
var ball:Sprite = new Sprite();
ball.graphics.beginFill(0x000000, 0);
ball.graphics.drawCircle(0, 0, 5);
ball.graphics.endFill();
addChild(ball);

var anchor:Sprite = new Sprite();

anchor.graphics.beginFill(0x333333, 0);
anchor.graphics.drawCircle(0, 0, 12);
anchor.graphics.endFill();
addChild(anchor);

var div:Number = .1;
var line_max_width:Number = 42;
var line_min_width:Number = 2;
var line_width:Number = randomRange(line_min_width, line_max_width);
var line_width_velocity:Number = 0;
var dampen:Number = 0.95;

var ballax:Number = 0;
var ballay:Number = 0;
var oldx:Number = ball.x;
var oldy:Number = ball.y;

var anchorvx:Number = 0;
var anchorvy:Number = 0;

anchor.x = stage.stageWidth/2;
anchor.y = stage.stageHeight/2;

var colors:Object = new Object();
colors.r = 0;
colors.g = 122;
colors.b = 255;
colors.rv = 0;
colors.gv = 0;
colors.bv = 0;
colors.min = 0;
colors.max = 200;
var color_first:Number = 0xFFFFFF;
var color_second:Number = rgb2hex(colors.r, colors.g, colors.b);
var gradientBoxMatrix:Matrix = new Matrix();

function loop ()
{
oldx = ball.x;
oldy = ball.y;

anchorvx += randomRangeAxis(2);
anchorvy += randomRangeAxis(2);

anchor.x += anchorvx;
anchor.y += anchorvy;

anchorvx *= dampen;
anchorvy *= dampen;

if(anchor.x > stage.stageWidth) {
anchor.x = 0 – anchor.width;
}
else if(anchor.x < 0 – anchor.width) { anchor.x = stage.stageWidth; } if(anchor.y > stage.stageHeight) {
anchor.y = 0 – anchor.height;
}
else if(anchor.y < 0 – anchor.height) { anchor.y = stage.stageHeight; } ball.x -= ballax = (ballax + (ball.x – anchor.x) * div) * .9; ball.y -= ballay = (ballay + (ball.y – anchor.y) * div) * .9; line_width_velocity += randomRangeAxis(1); line_width += line_width_velocity; line_width_velocity *= dampen; if(line_width > line_max_width) {
line_width = line_max_width;
line_width_velocity = 0;
}
else if (line_width < line_min_width) {
line_width = line_min_width;
line_width_velocity = 0;
}

color_step();
color_first = color_second;
color_second = rgb2hex(colors.r, colors.g, colors.b);

var dx:Number = ball.x – oldx;
var dy:Number = ball.y – oldy;
this.graphics.lineStyle(line_width);
gradientBoxMatrix.createGradientBox(Math.abs(dx), Math.abs(dy), Math.atan2(dy,dx), Math.min(oldx, ball.x), Math.min(oldy, ball.y));
this.graphics.lineGradientStyle(GradientType.LINEAR, [color_first, color_second], [1,1], [85, 170], gradientBoxMatrix);
this.graphics.lineTo(ball.x, ball.y);
}

setInterval(loop, 1000/30);
function rgb2hex(r:Number, g:Number, b:Number):Number {
return(r<<16 | g<<8 | b); } function color_step(){ colors.rv += Math.random() * 20 – 10; colors.r += colors.rv; colors.rv *= dampen; if (colors.r > colors.max) {
colors.r = colors.max;
} else if (colors.r < colors.min){ colors.r = colors.min; } colors.gv += Math.random() * 20 – 10; colors.g += colors.gv; colors.gv *= dampen; if (colors.g > colors.max) {
colors.g = colors.max;
} else if (colors.g < colors.min){ colors.g = colors.min; } colors.bv += Math.random() * 20 – 10; colors.b += colors.bv; colors.bv *= dampen; if (colors.b > colors.max) {
colors.b = colors.max;
} else if (colors.b < colors.min){
colors.b = colors.min;
}
}
//random number between min and max
function randomRange(max:Number, min:Number = 0):Number {
return Math.random() * (max – min) + min;
}
//random number range centered at 0 with the specified max, randomRange(-max, max)
function randomRangeAxis(max:Number):Number {
return Math.random() * (max * 2) – max;
}

[/cc]

download

swf and fla source file.
